Hydraulic Tank Capacity: 22L (5.8 gal). Hydraulic Thumb. Fuel type: Diesel. Type: 3-cylinder, water-cooled, diesel. Arm digging force: 14.8 kN (3,330 lbf). Bucket breakout force: 24 kN (5,400 lbf). Rated power: 18.2 kW (25 hp).

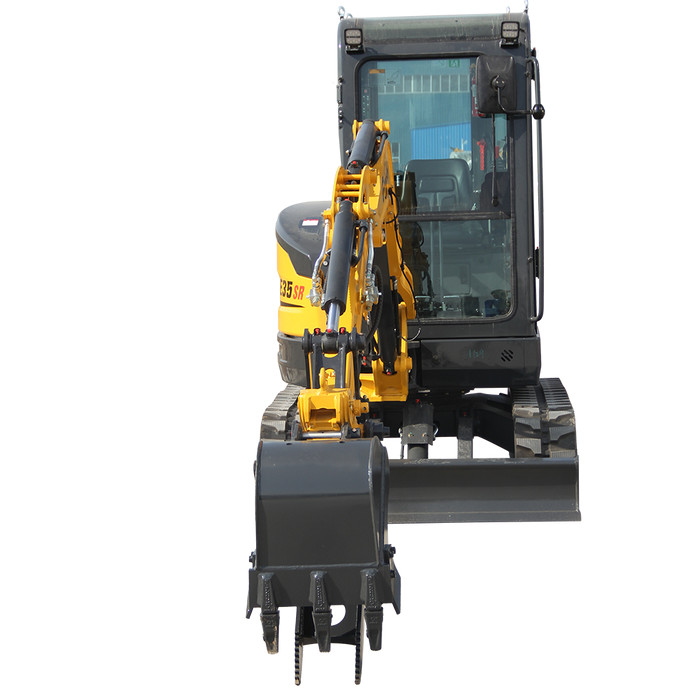

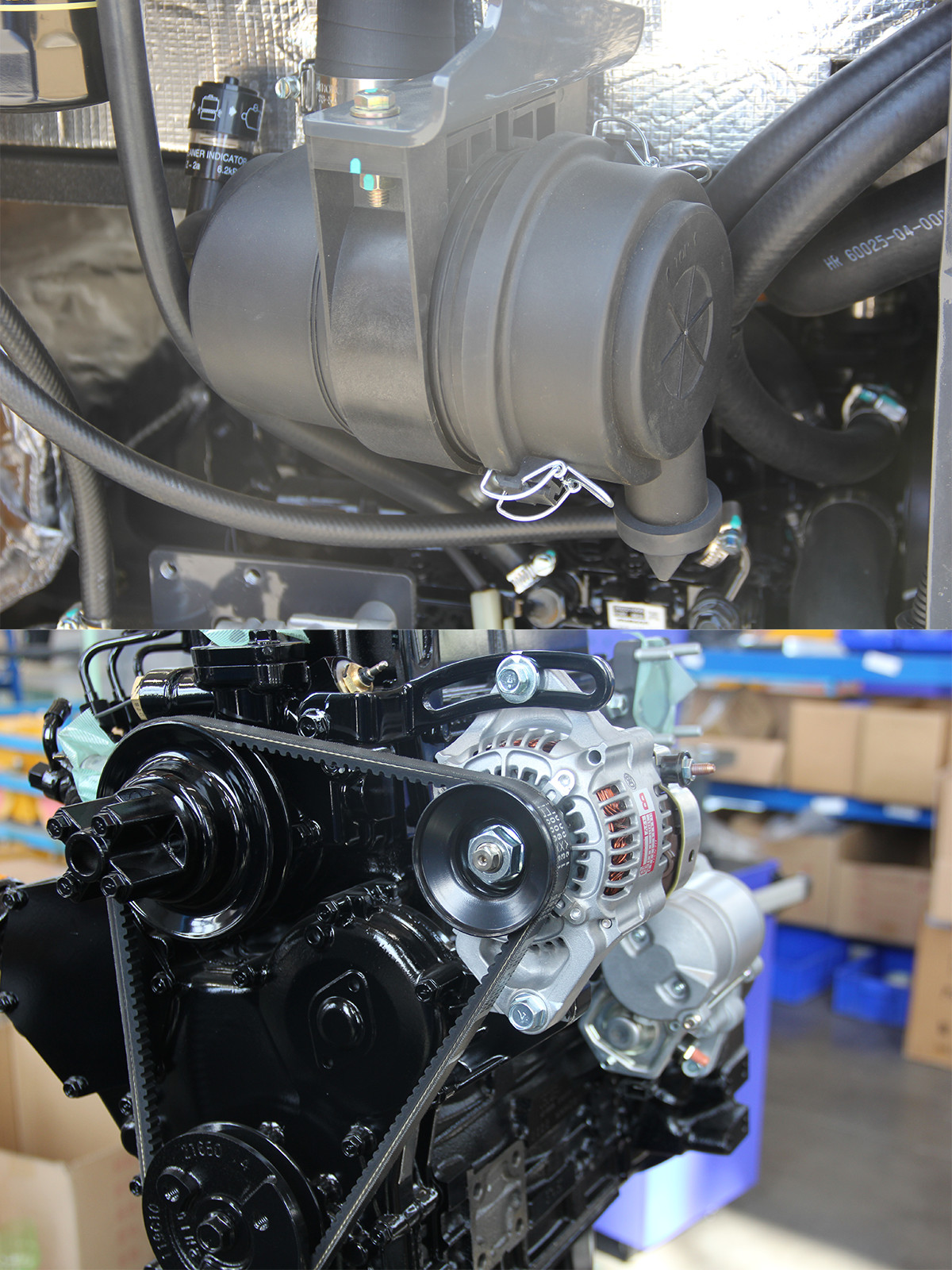

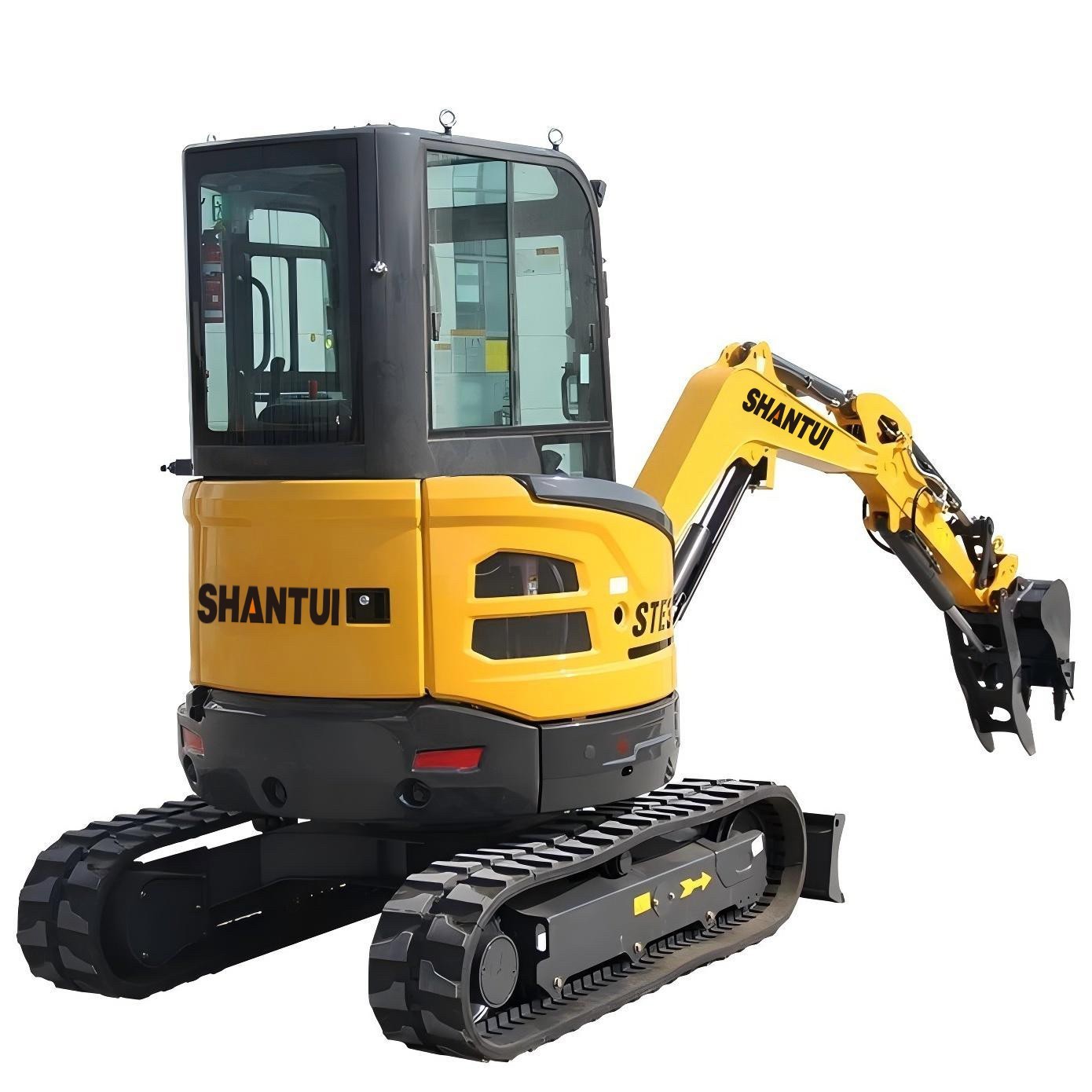

This is a 2.8-ton mini excavator built for serious work on job sites. Powered by a Yanmar diesel engine delivering 25 horsepower, it combines compact dimensions with impressive digging performance.
The machine features a maximum digging depth of 2,800 mm and a reach of 4,680 mm at ground level, making it versatile for various excavation tasks. It includes a front dozer blade for pushing and grading and a hydraulic thumb for enhanced bucket control. The enclosed cabin with pilot controls provides operator comfort and precision.
Key working specs include a bucket breakout force of 24 kN and compatible attachments for augers, breakers, and grapples. The excavator operates on tracked undercarriage with 4 rollers per side, offering excellent ground traction and minimal ground disturbance. It meets Tier 4 Final / EU Stage V emission standards.
The package comes with 1 year warranty and is equipped with LED lights and a rearview mirror for safety. Bucket capacity ranges from 0.1 to 0.15 cubic meters, and the hydraulic system supports flow-matched attachments up to 25 GPM.
