Bore stroke Single cylinder, fan cool. Engine Rato 420 13.5HP. Rotation radius 1330mm. Digging radius on ground 3050mm. Dumping height 1850mm. Digging height 2610mm. Vertical digging depth 1550mm. Digging depth 1750mm.

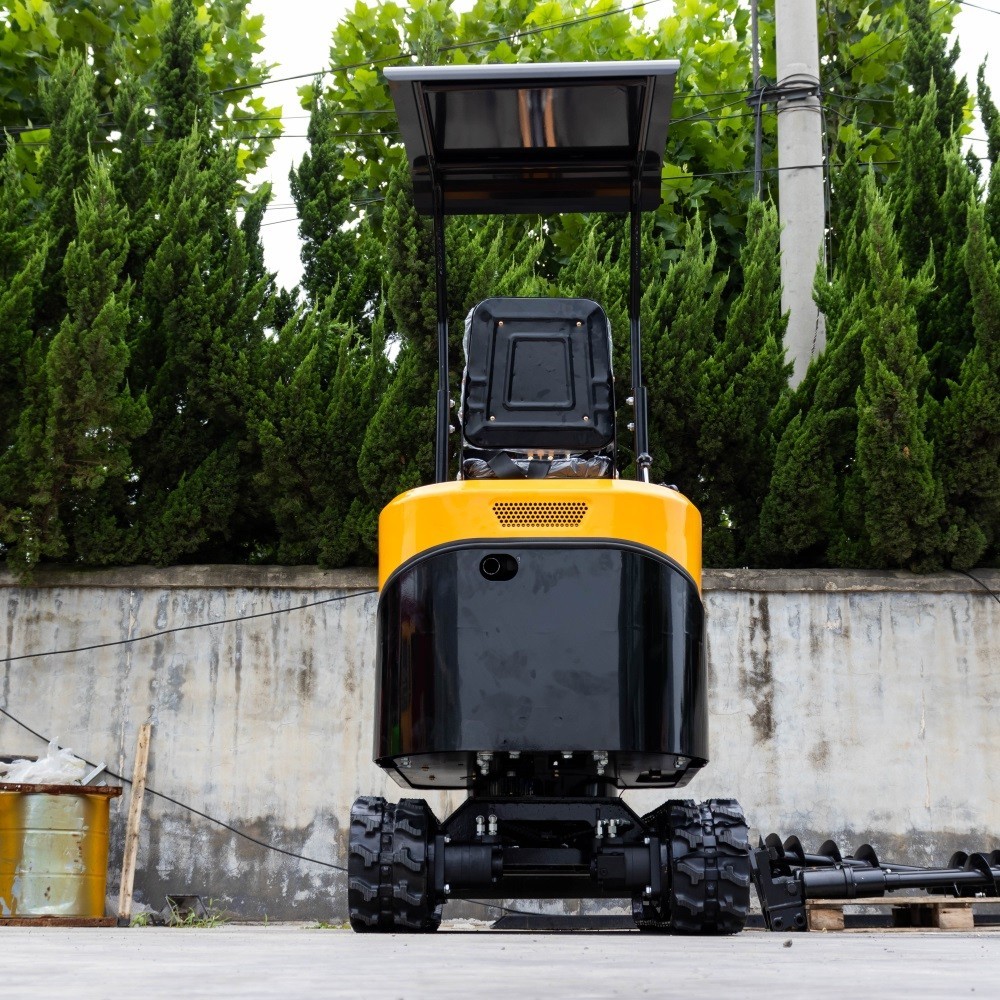

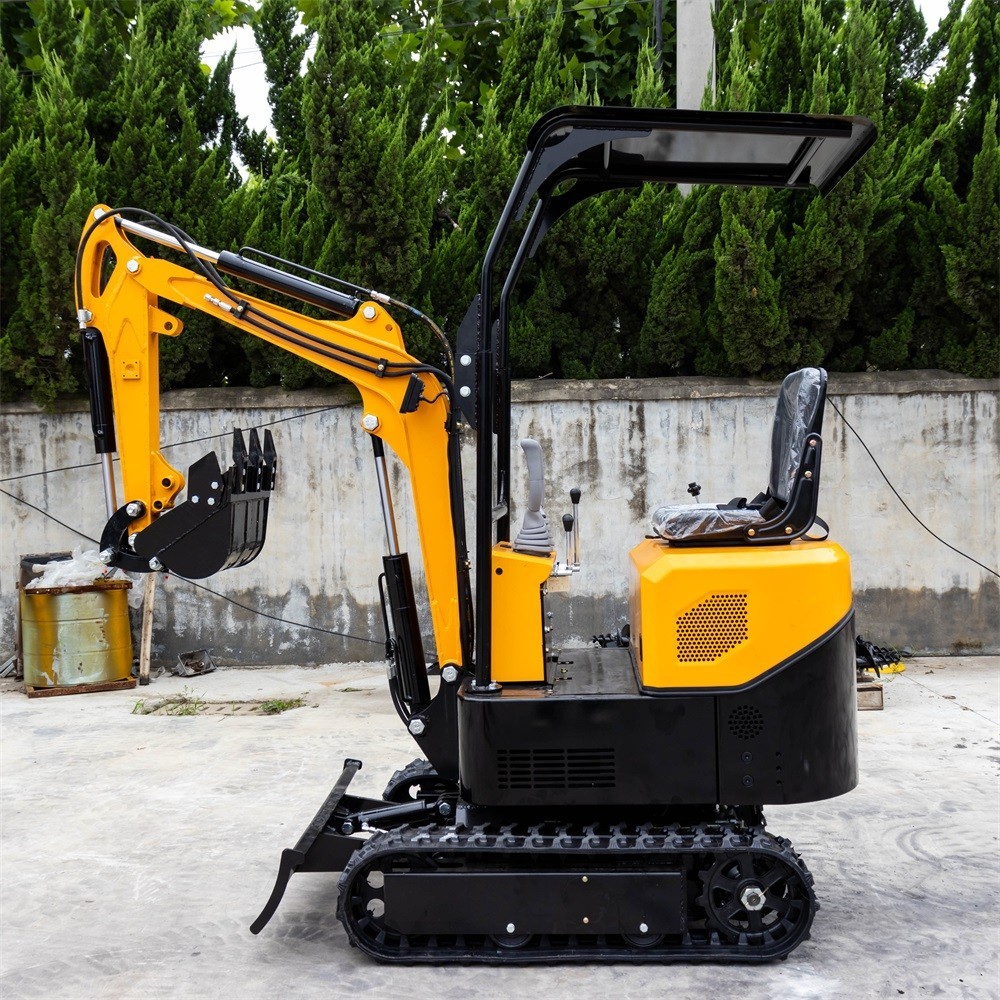

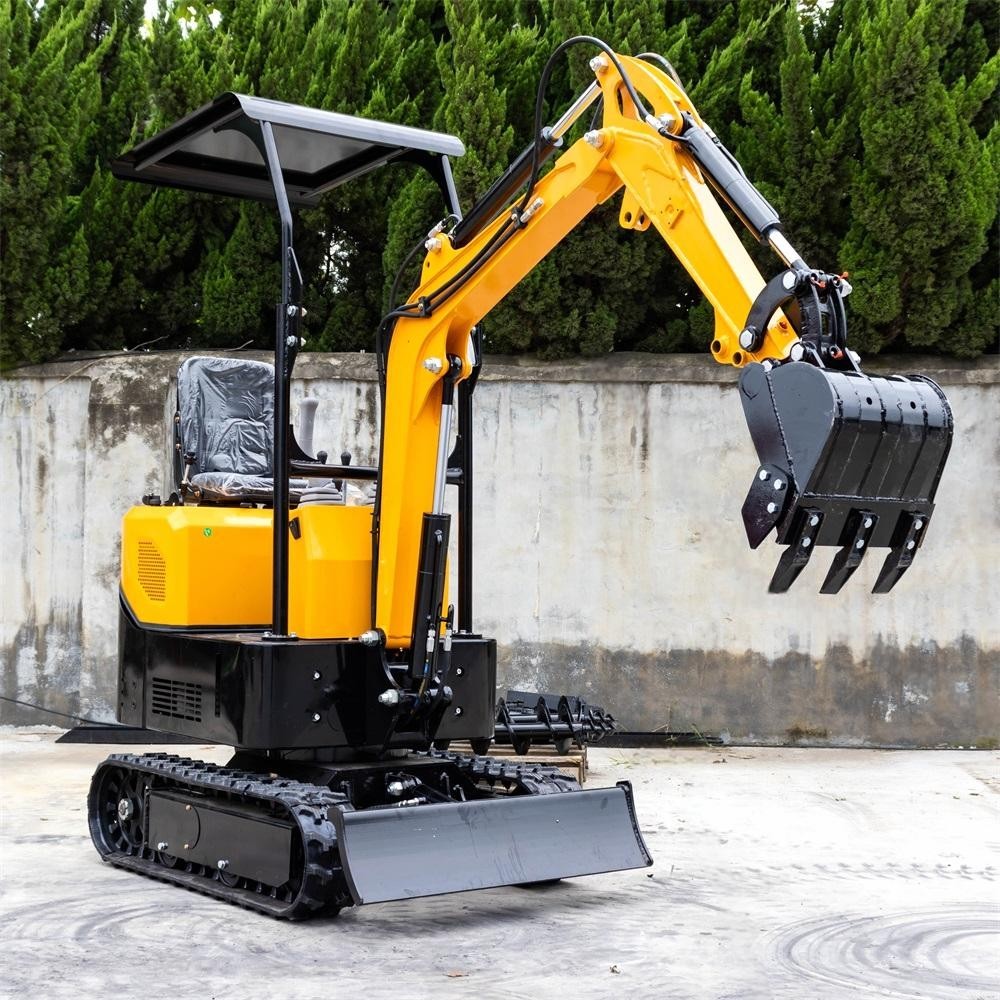

This is a mini excavator designed for small work sites and tight, complex environments. Unlike traditional large excavators, this compact machine weighs just 1000kg and is considerably easier to operate and maneuver in confined spaces.
The excavator features a 0.025 cubic meter digging bucket with a 120kg capacity and a 380mm bucket width. It runs on a Rato 420 13.5HP single-cylinder engine with a 6.8ml displacement and fan cooling system, allowing it to travel at speeds up to 1.5km/h.
With an overall length of 2900mm and width of 900-930mm, this machine can dig to a maximum depth of 1750mm and reach heights of up to 2610mm. The minimum rotation radius of 1330mm makes it ideal for tight job sites where larger equipment cannot operate. It also includes a bulldozer blade capable of digging up to 255mm deep.
