KUBOTA D1105 3-cylinder water-cooled diesel enginewith 15.4kW/2400rpm power output. ◆ Advanced Hydraulic System Premium hydraulic cylinders, motors, and valvesfor consistent performance. Hydraulic and spring-actuated brakes (normallyclosed)for secure operation.

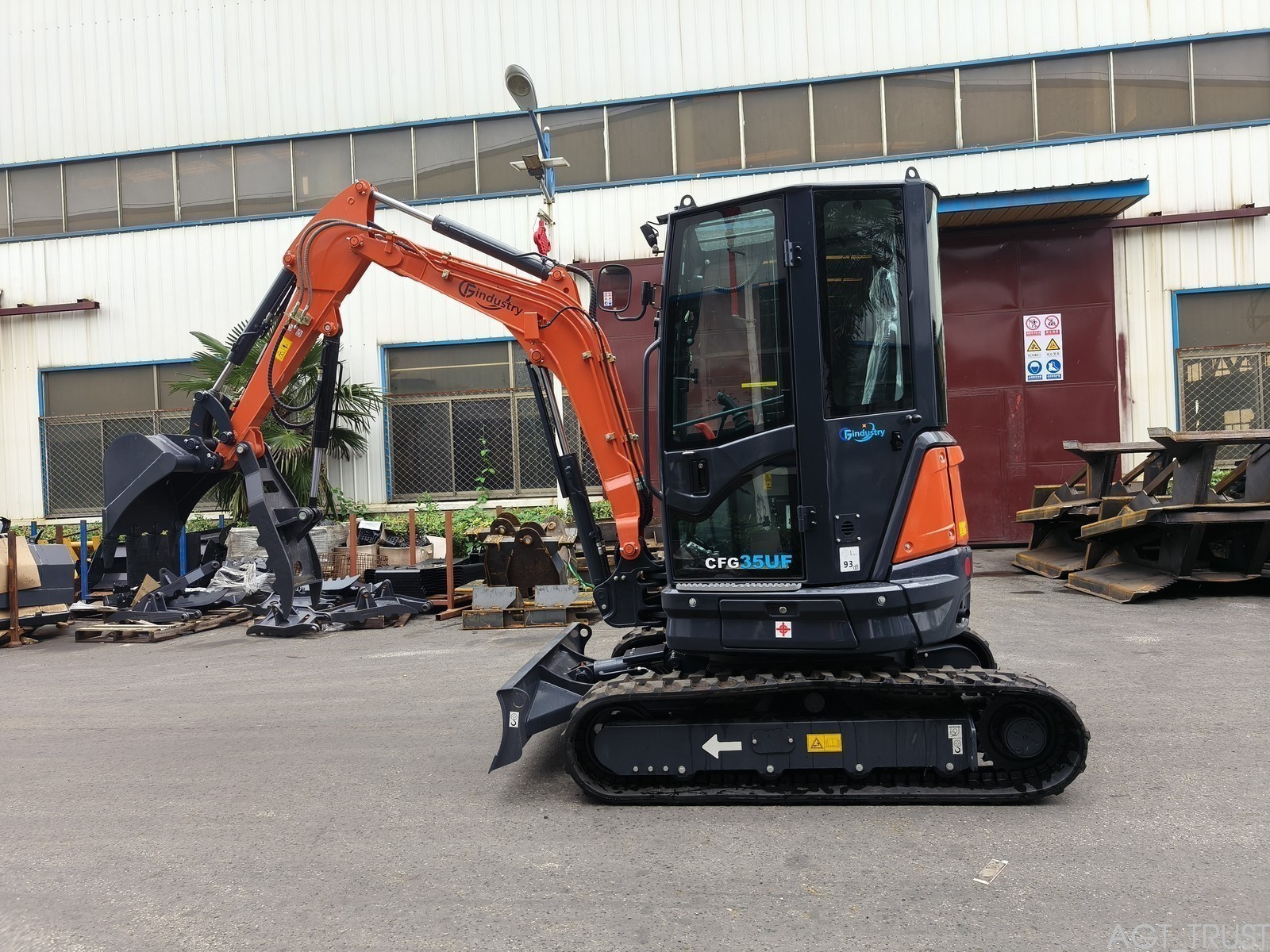

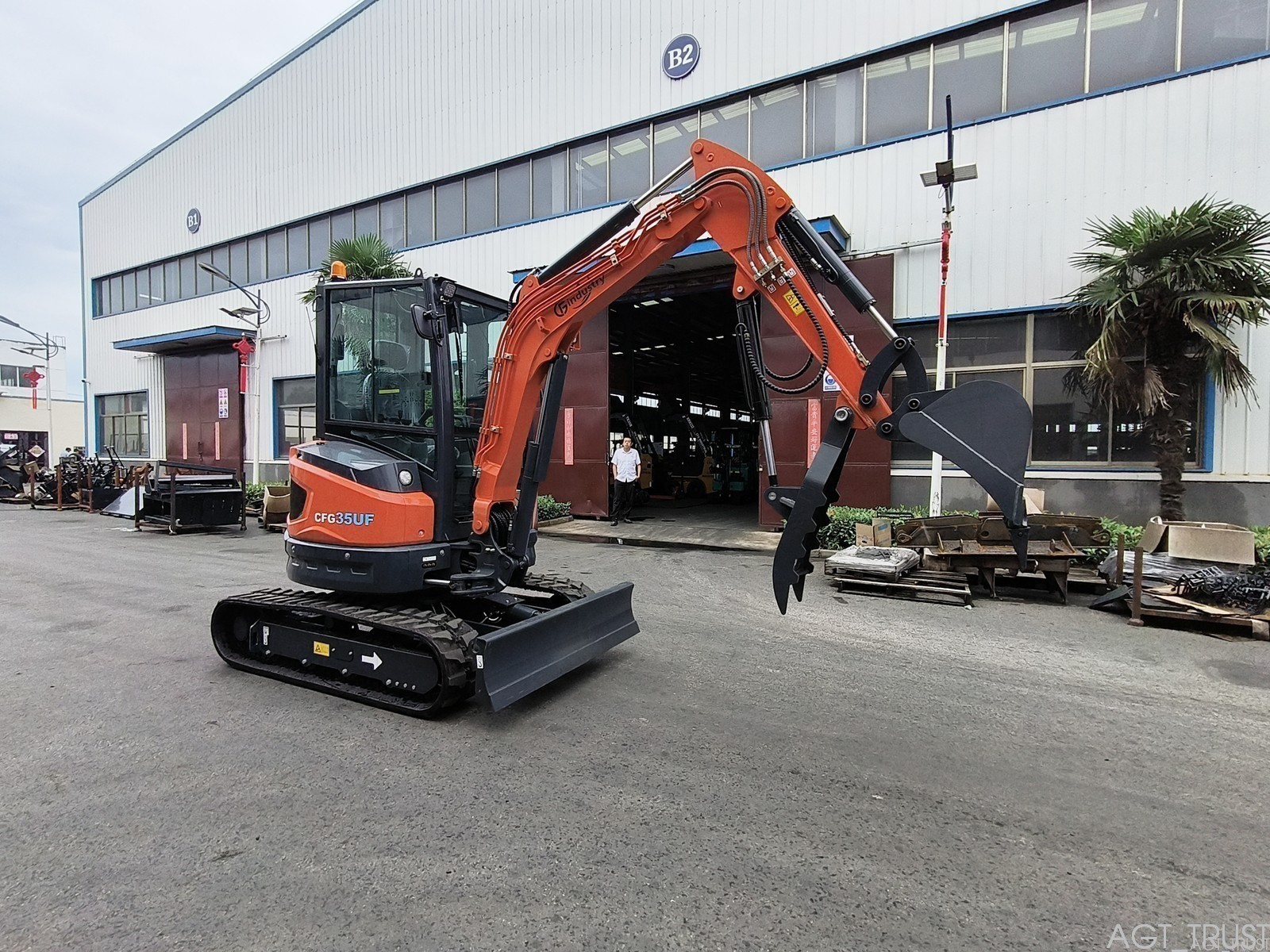

The CFG35UF is a high-performance mini excavator built for tight spaces. With its compact design and 360-degree rotatable flat roof, this machine excels where larger equipment cannot fit. The small 1980mm rear end ensures exceptional maneuverability without sacrificing power.
Powered by a reliable KUBOTA 3-cylinder water-cooled diesel engine producing 15.4kW at 2400rpm, the CFG35UF delivers consistent digging capabilities. Its advanced hydraulic system features a high-pressure piston pump with 67.2L/min flow and 24.5MPa working pressure, enabling precise control through dual control levers.
This excavator reaches a maximum digging depth of 2800mm and a maximum digging radius of 4780mm. The machine measures 4150mm in length, 1500mm in width, and 2510mm in height. It accepts bucket sizes ranging from 300mm to 1000mm, with optional quick coupler compatibility.
The CFG35UF serves diverse applications including urban construction, landscaping, utility work, roadside operations, and small-scale trenching. Safety features include hydraulic and spring-actuated brakes that default to closed position. Large-capacity fuel and hydraulic tanks with accessible service points make maintenance straightforward for operators.
