Fuel Type:Gasoline. Maximum power(HP): 13.5. Side Swing: YES. Climbing ability(%): 11. J:Overall Length(mm): 3240. Working Weight(kg): 900. Rated set pressure(Mpa): 16. Bulldozer Width/Height: 950/235.

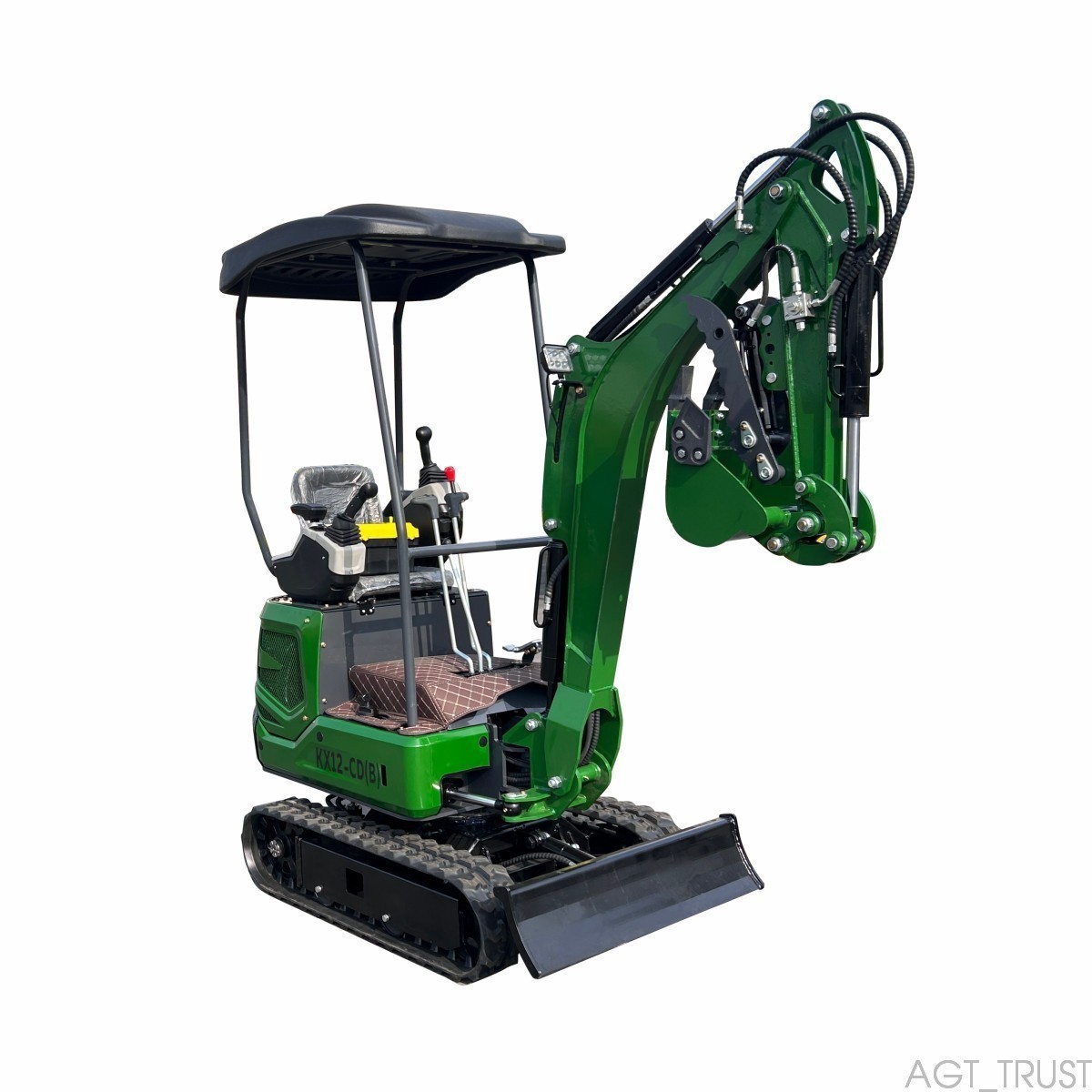

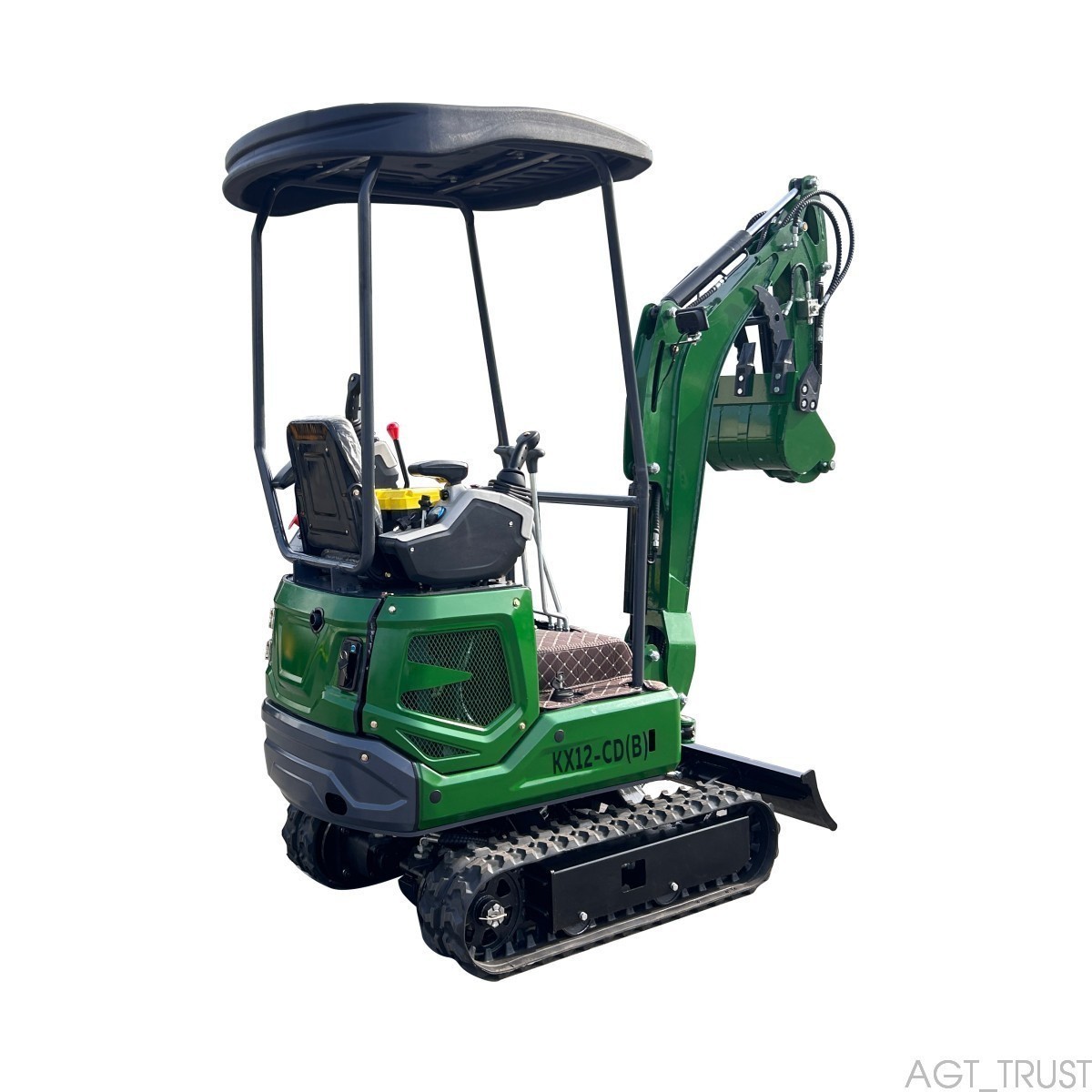

The AGT-KX12-CD(B) is a compact mini excavator designed for light construction work and tight-access job sites. Powered by a 13.5 HP Briggs & Stratton gasoline engine with fan cooling, this machine delivers reliable performance in an affordable and easy-to-maintain package.
The excavator features side-swing capability and weighs just 900 kg, making it highly maneuverable for confined spaces. Its 0.03 m³ bucket can reach a maximum digging height of 2900 mm and a maximum digging radius of 3250 mm. The machine also includes dual blade lifting functions with a maximum lifting height of 190 mm.
With dimensions of 3240 mm in length and 990 mm in width, the KX12-CD(B) maintains a minimum turning radius of 1470 mm for enhanced maneuverability. The hydraulic system operates at 16 Mpa rated pressure with a maximum pump flow of 21.6 L/min. The excavator can achieve travel speeds up to 1.8 km/h and climb grades up to 11 percent.
