Hydraulic Cylinders (Standard Backhoe) Engine Model : KUBOTA D1105 (water-cooled diesel). 2.High-Performance Hydraulic System. Hydraulic Pump: Piston pump (HP5VS28-AV1ORB2S1MA-L1-1-T921). Swing Brake: Hydraulic + spring pressure (normally closed).

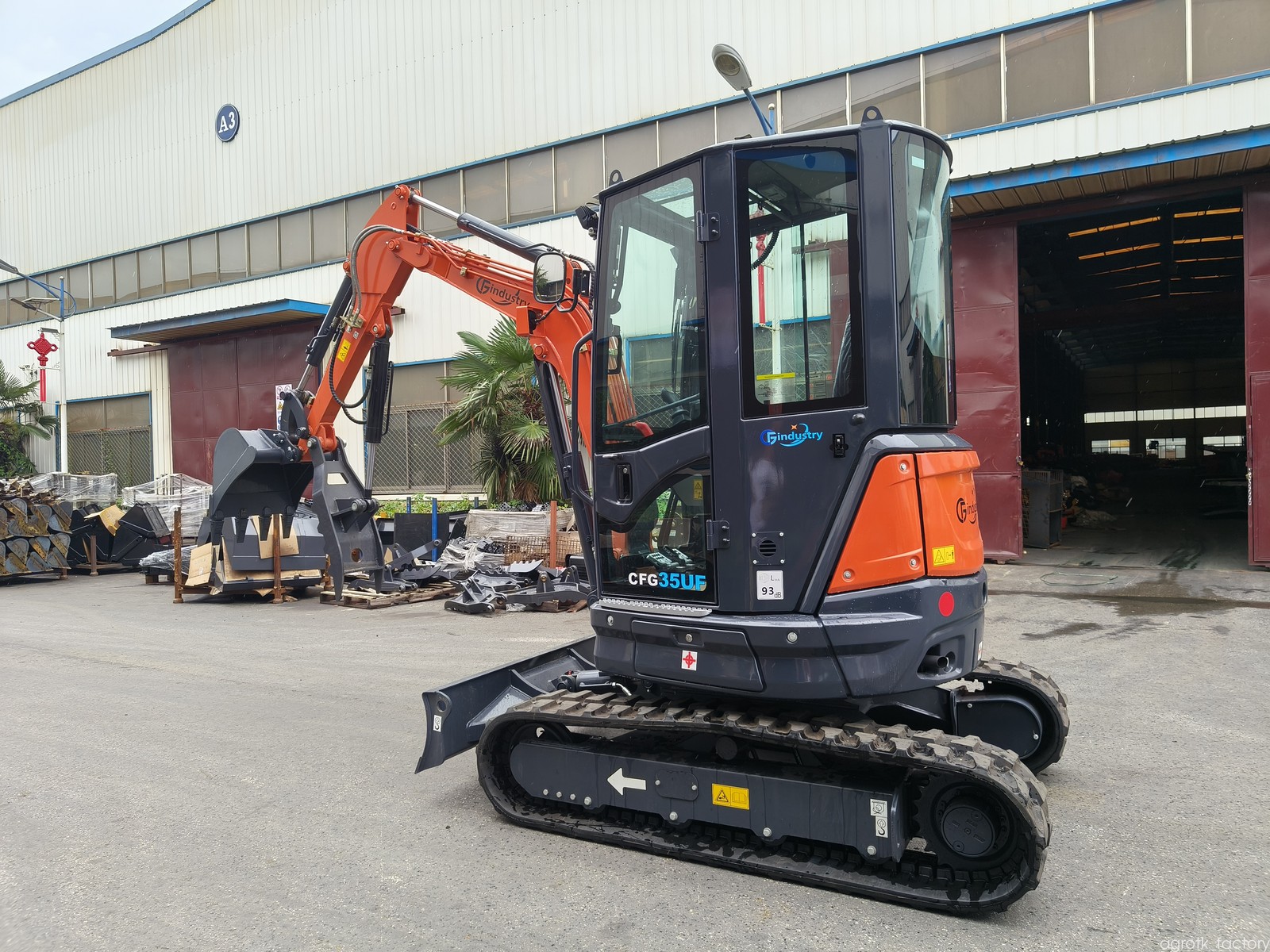

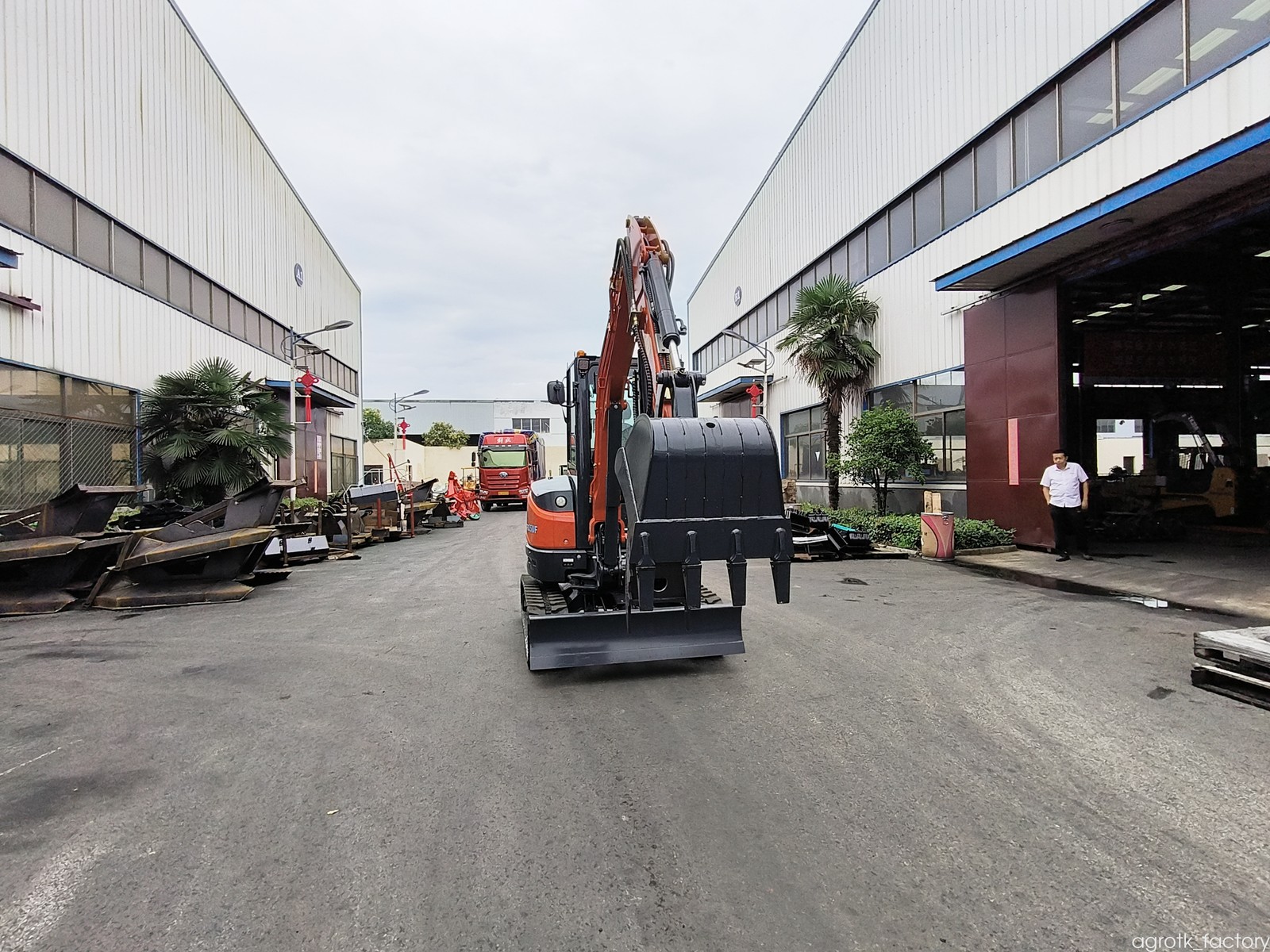

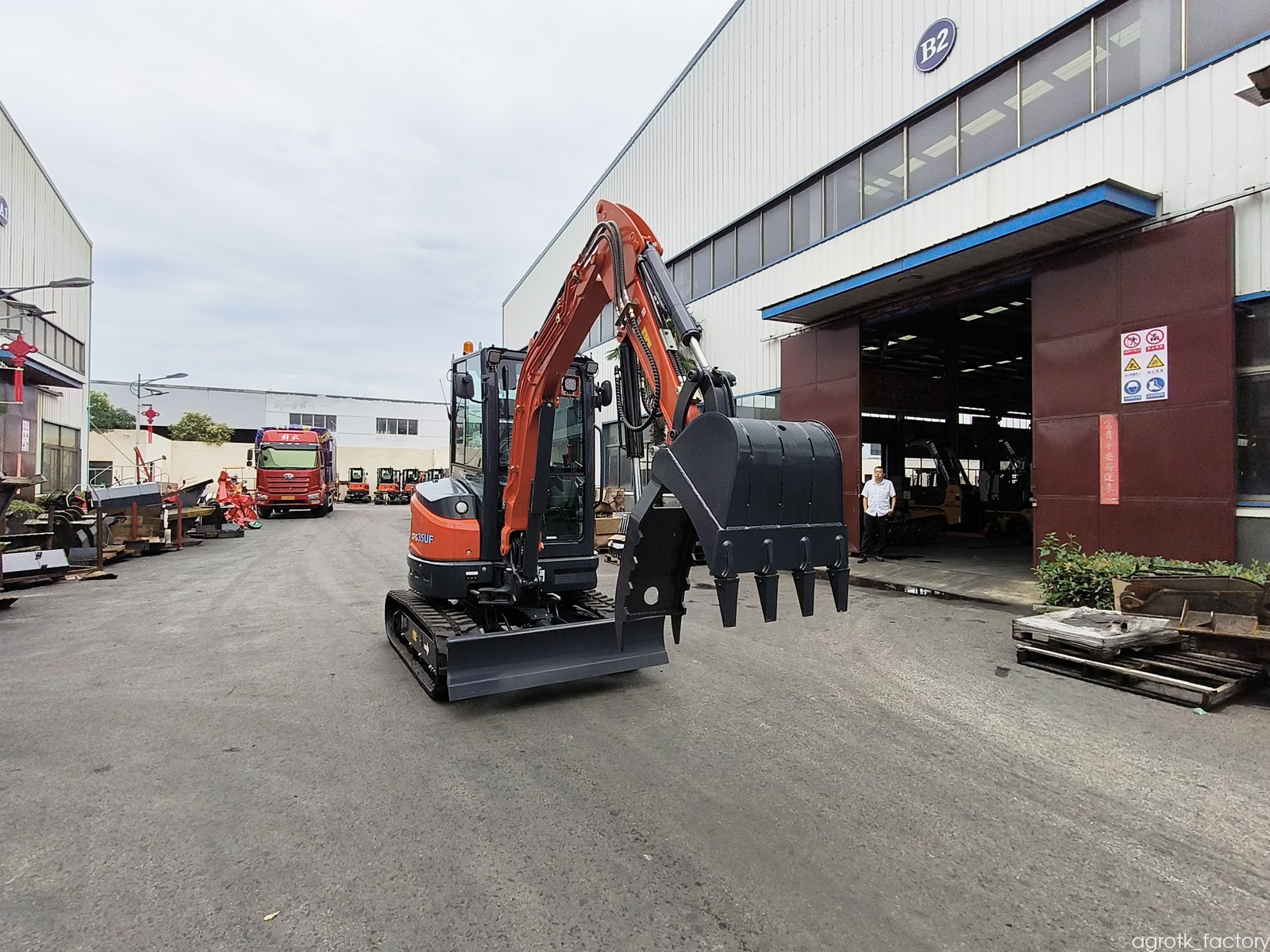

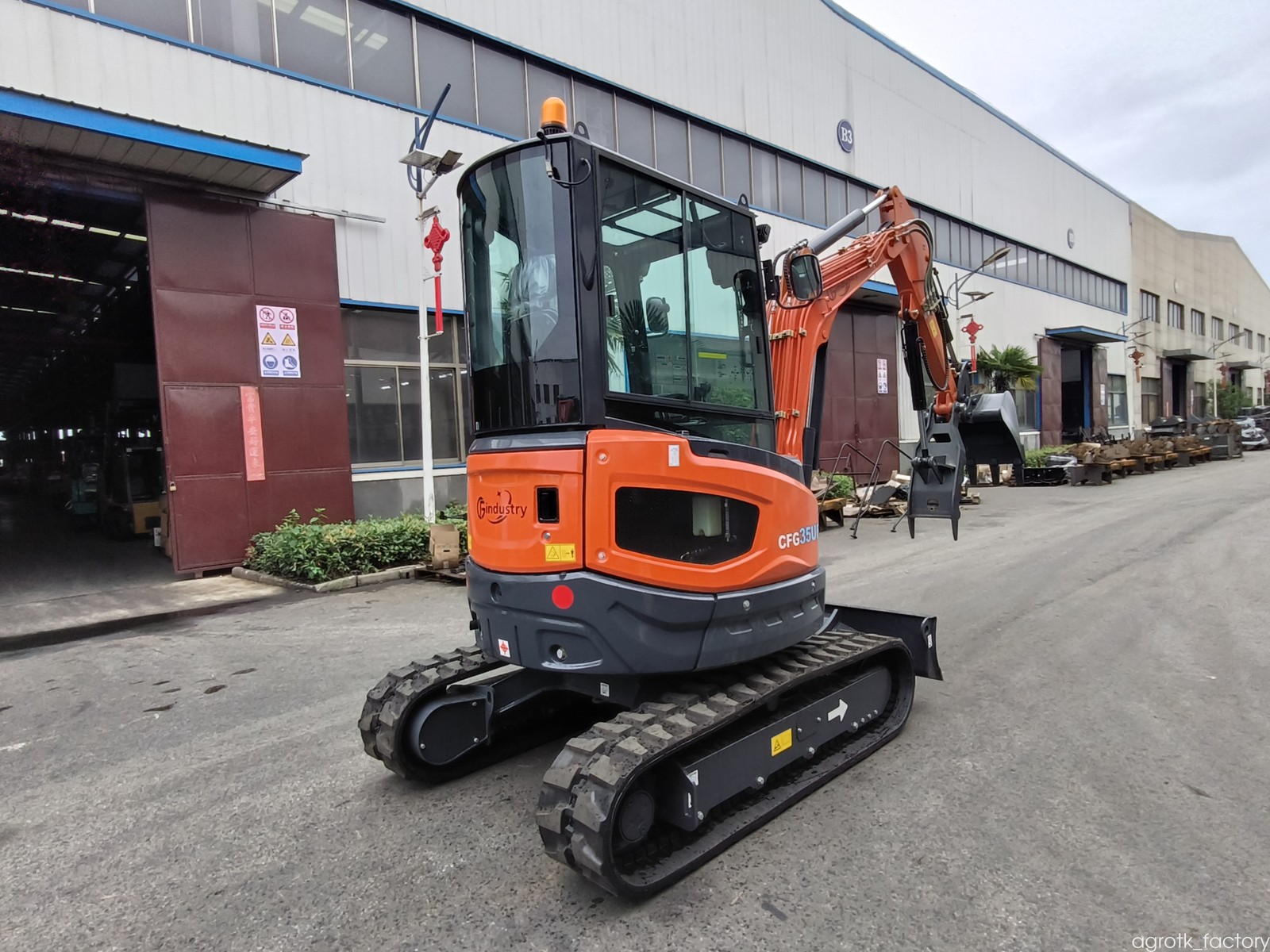

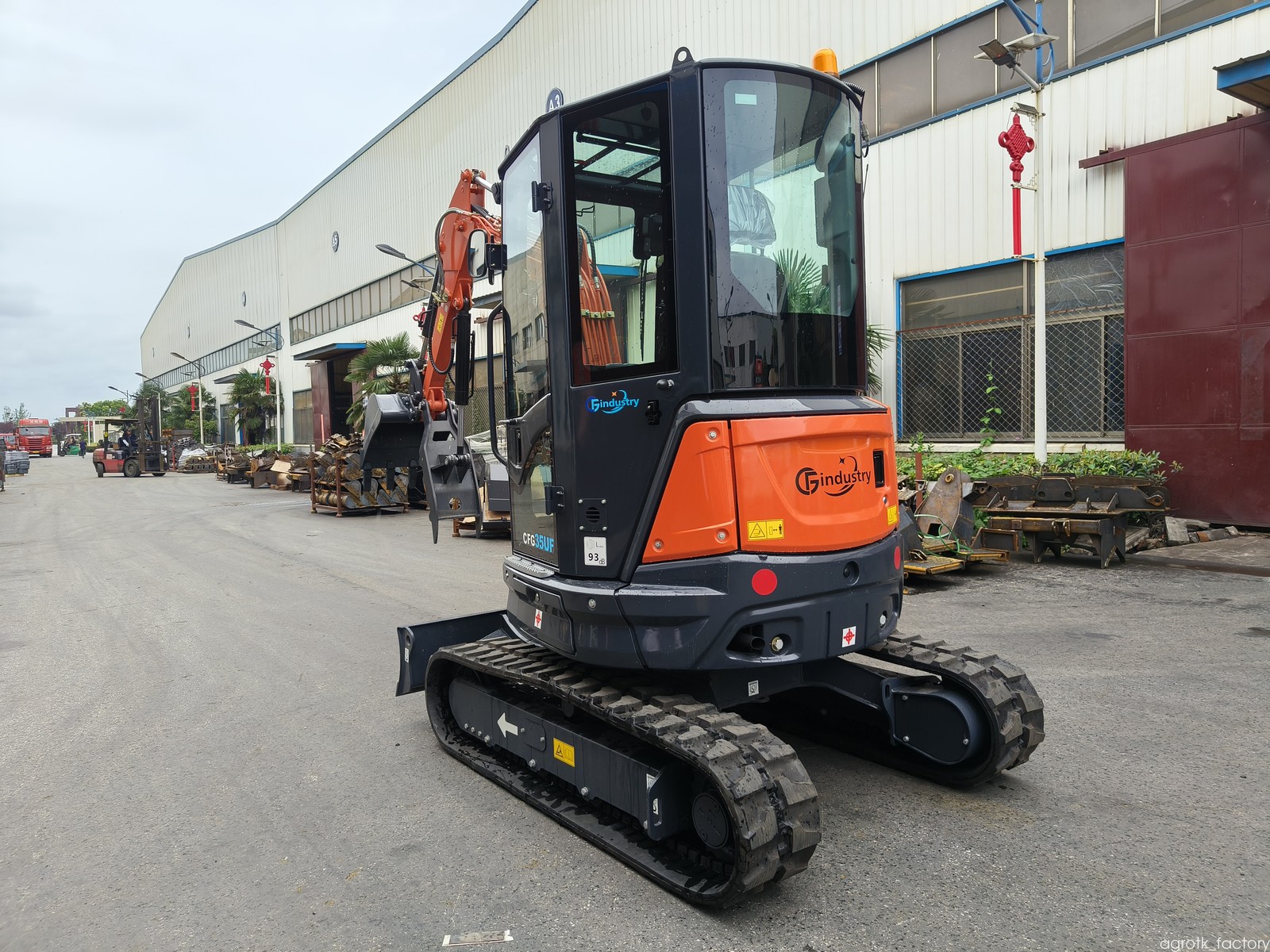

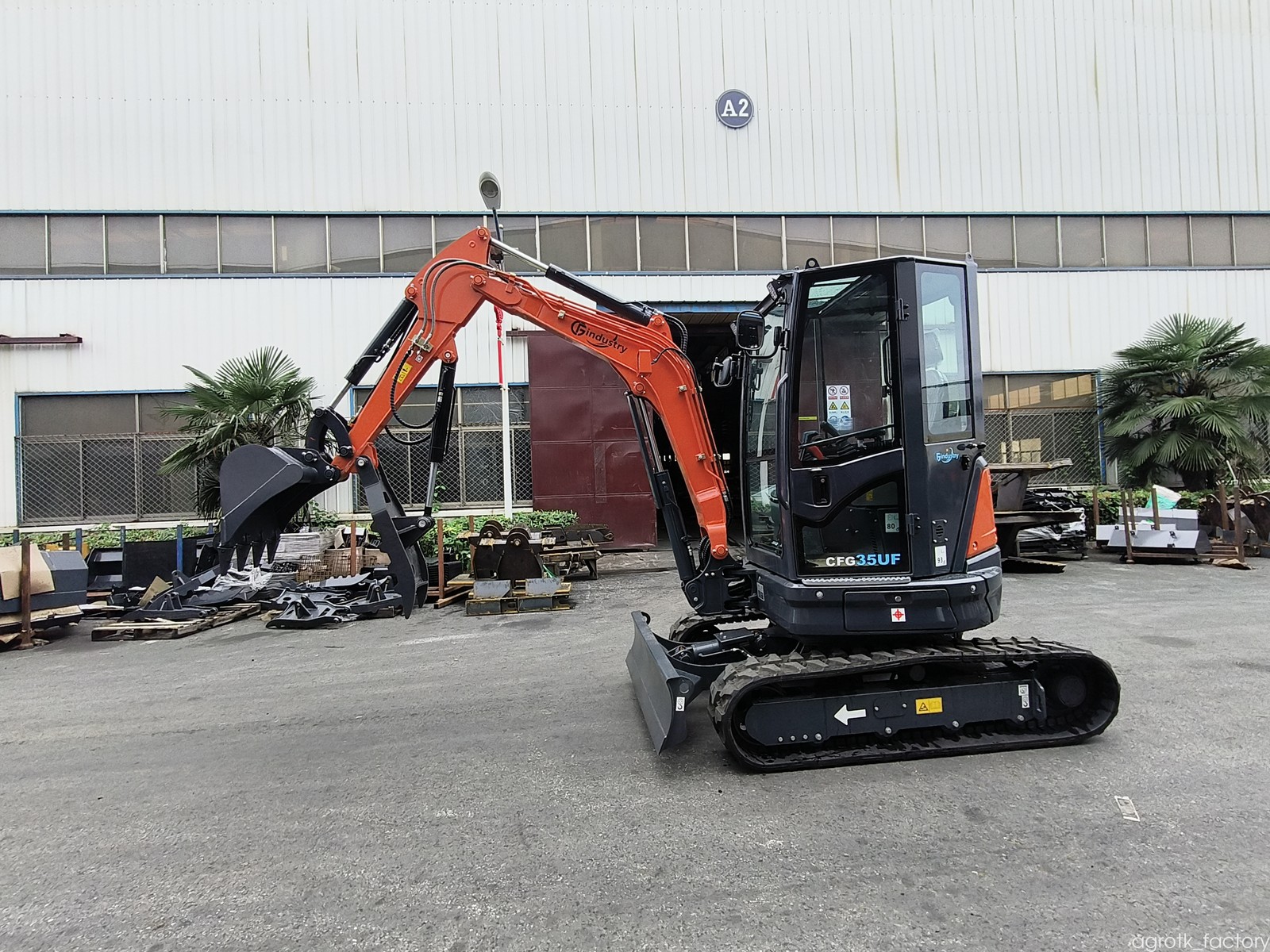

The CFG35UF is a high-performance mini excavator engineered for tight workspaces. Its compact design features a 360° rotatable flat roof and a small 1980mm rear end, making it exceptionally maneuverable without sacrificing digging power.

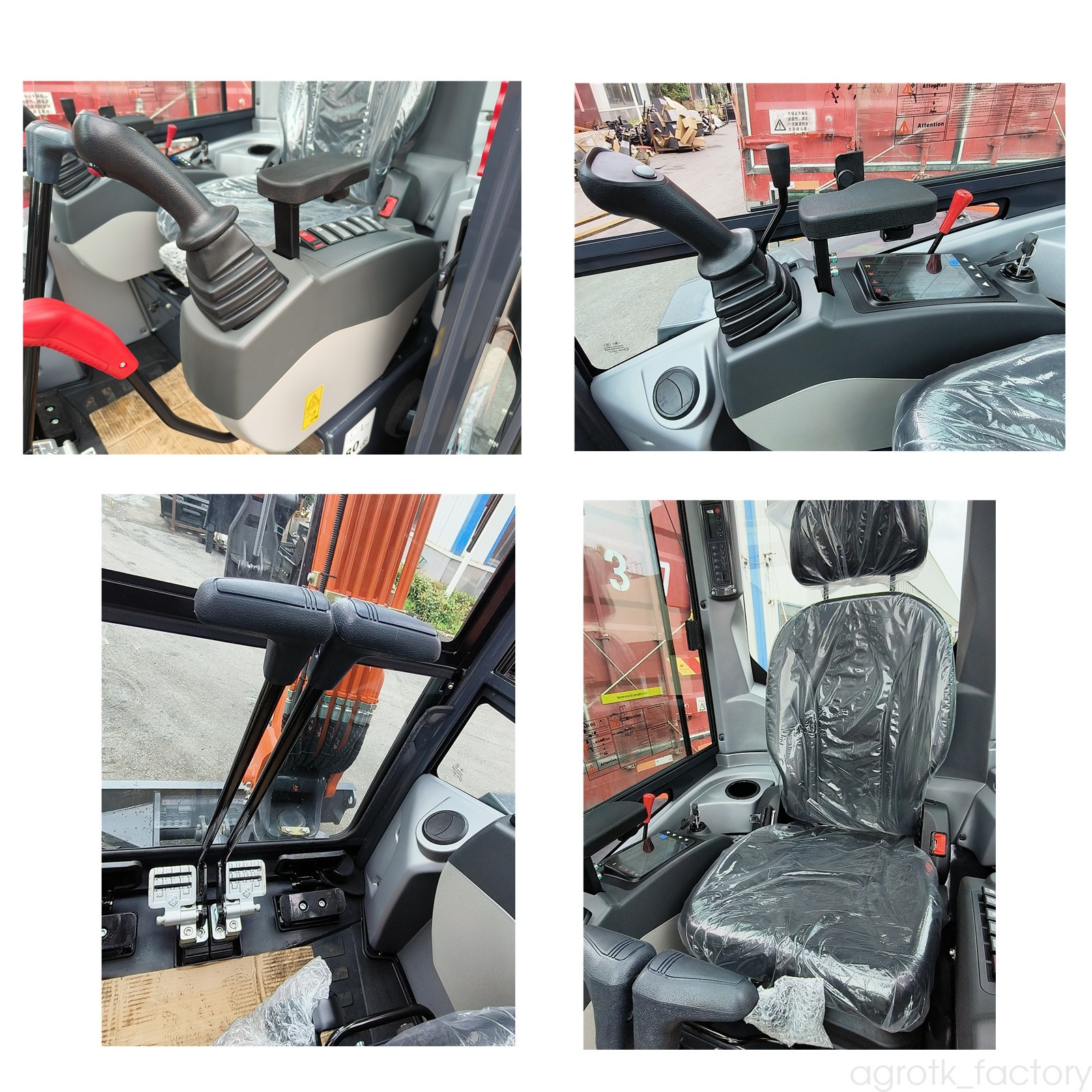

At the heart of this machine is a reliable KUBOTA D1105 water-cooled diesel engine delivering 15.4 kW (20.6 HP) with optimized fuel efficiency at just 258 g/kW·h. The advanced hydraulic system includes a high-performance piston pump with 67.2 L/min flow rate and 24.5 MPa working pressure, paired with proportional hydraulic joysticks for smooth, precise control of all functions.
Built for stability and performance, the CFG35UF can handle 30° slopes and achieves travel speeds up to 4.4 km/h. The swing mechanism produces 5,099 N·m of torque with a hydraulic brake system for safety. A 26L fuel tank enables extended operation between refills.
The machine comes standard with a 580mm bucket but offers optional buckets ranging from 300mm to 1,000mm, allowing users to adapt the excavator for various construction, landscaping, and utility projects. A 1-year warranty is included.
