Lts retractable undercarriage allows access to narrow job sites, makingit ideal for urban and residential applications. Skid Steer Loaders. Side Swing Boom. Gasoline Machinery. Max Digging Depth: 1,760 mm (69 in)Max Digging Height: 2,590 mm (102 in)Max Dumping Height: 1,790 mm (70.5 in)Max Reach at Ground: 2,600 mm(102.5 in)Blade Width: 900 mm (35 in)Blade Height:180 mm(7 in)Blade Max Lifting Height: 380 mm (15 in)Blade Max Drop Depth:170 mm( in).

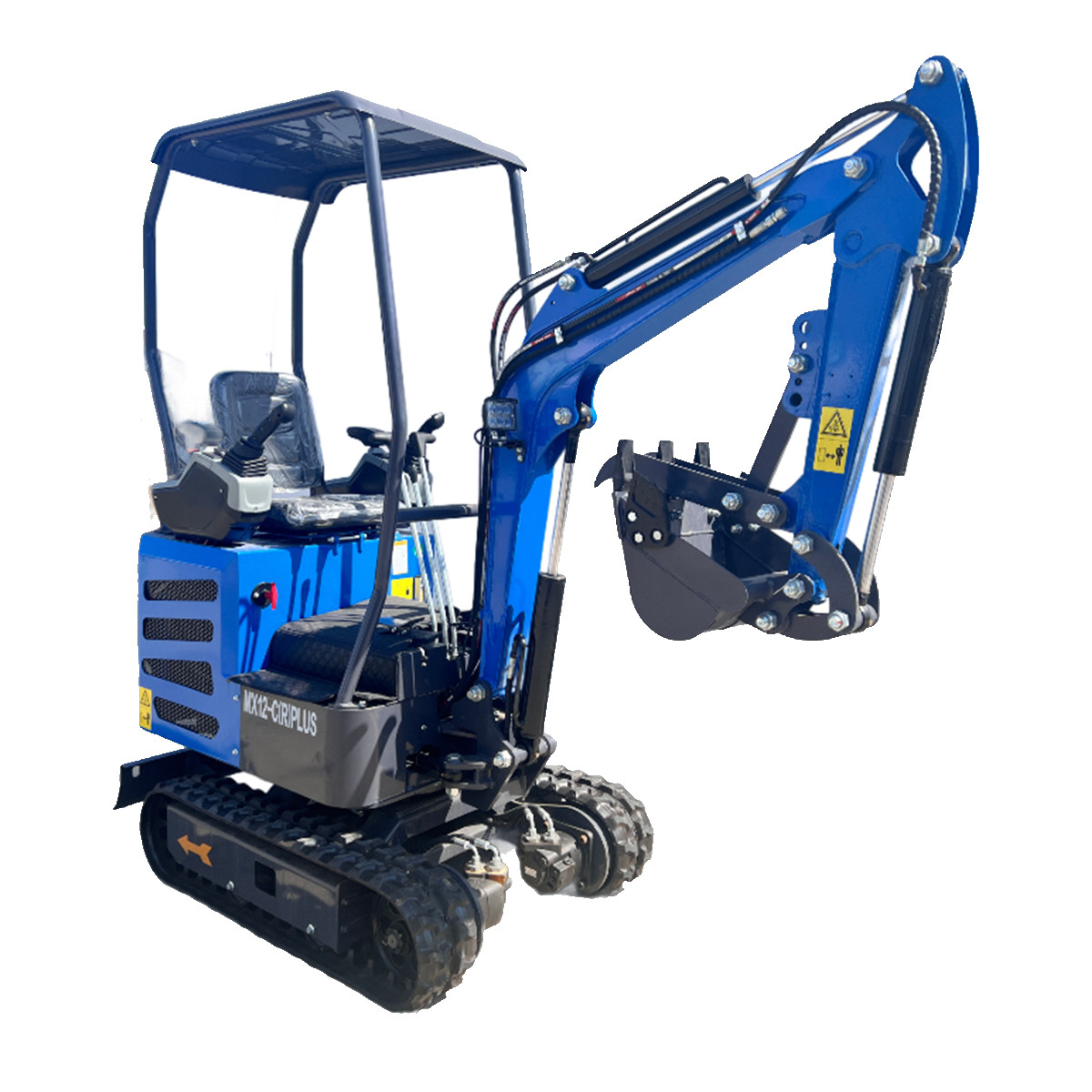

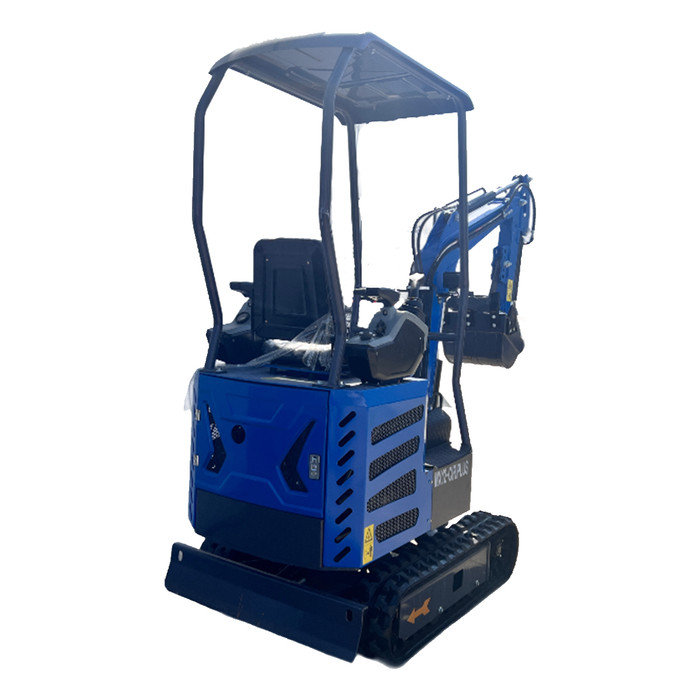

The MX12-CRPLUS is a compact crawler mini excavator designed for light construction, landscaping, and utility work. Weighing just 0.8 tons (1,600 lbs), this machine features a retractable undercarriage that allows access to narrow job sites, making it perfect for urban and residential applications where space is limited.
Powered by a Rato R420D gasoline engine with 10.5 kW (13.5 HP) and direct fuel injection, the excavator delivers dependable performance. Its side swing boom and pilot control system provide precise operation, while an LED work light enables work in various conditions.
The machine offers impressive working capabilities with a maximum digging depth of 1,760 mm (69 inches), a maximum reach of 2,600 mm (102.5 inches) at ground level, and a digging height reaching 2,590 mm (102 inches). The front blade measures 900 mm wide and can lift up to 380 mm or drop 170 mm for grading work.
This mini excavator comes backed by a 1-year warranty and is engineered with a reinforced structure and efficient hydraulic system rated at 16 MPa pressure and 21.6 L/min flow rate.
