Rated Power:10 kW (13.3 HP). Overall Length:3,240mm(127.5in). Battery:12V, 45-60Ah. Hydraulic Tank Capacity:18L(4.7gal). Max Reach atGround: 3,250mm(128in). Hydraulic Flow Rate: 21.6 Lmin (5.7 GPM). Fuel Capacity:6.6 L(1.7gal).

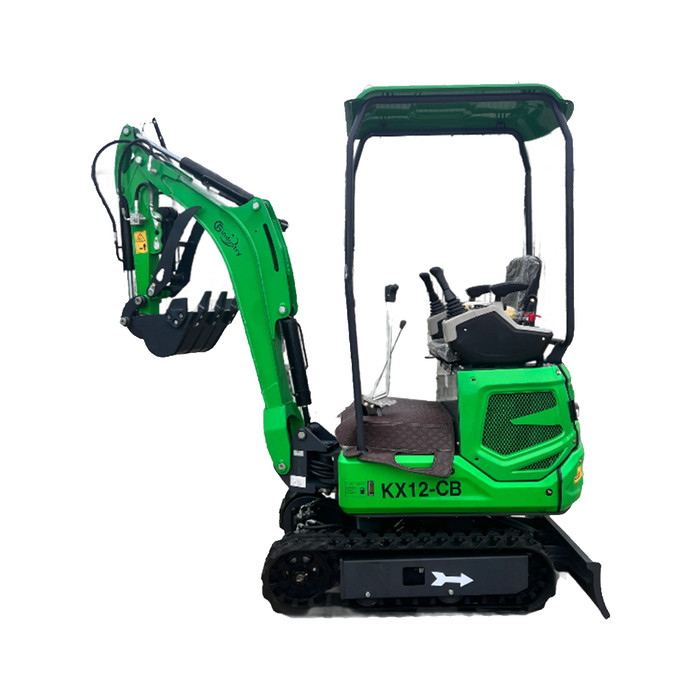

This 0.9-ton mini excavator is designed for tight spaces and detailed digging tasks. Weighing just under 2,000 pounds, it measures 127.5 inches long, 39 inches wide, and 86.5 inches tall - making it compact enough to fit through standard doorways and work in confined areas.

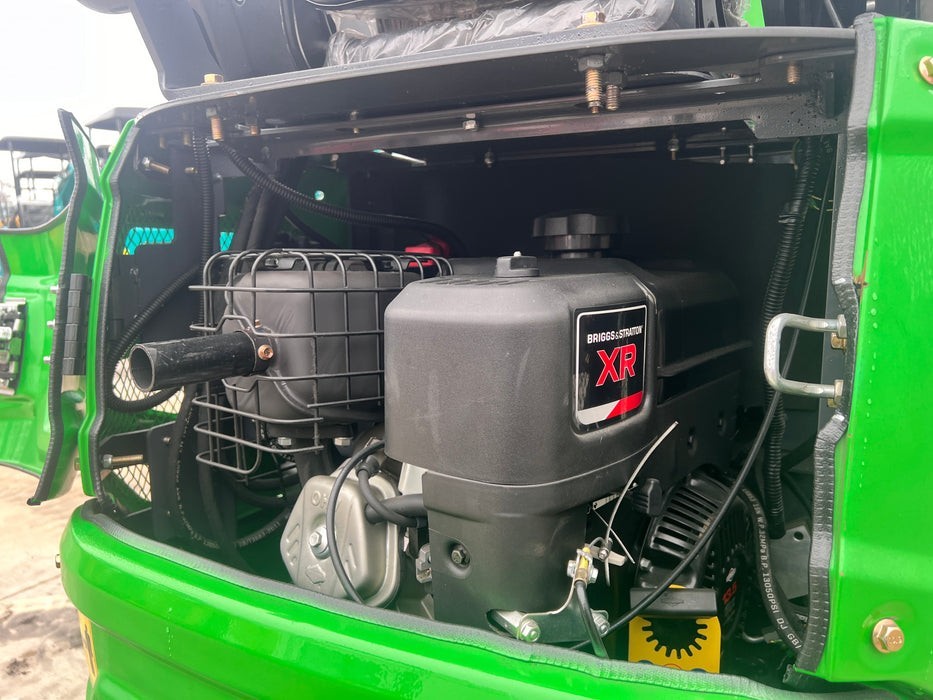

The machine features a Briggs & Stratton gasoline engine delivering 13.3 horsepower with a 420cc displacement. It runs on a modest 1.7-gallon fuel tank and operates with 21.6 liters per minute hydraulic flow at 2,320 PSI, providing smooth and controlled movements.
The excavator reaches an impressive maximum digging height of 2,900mm (114 inches) and can dump material at heights up to 82.5 inches. Its 950mm-wide blade lifts materials up to 7.5 inches high or drops them 7.5 inches deep. The arm extends 128 inches across the ground for extended reach.

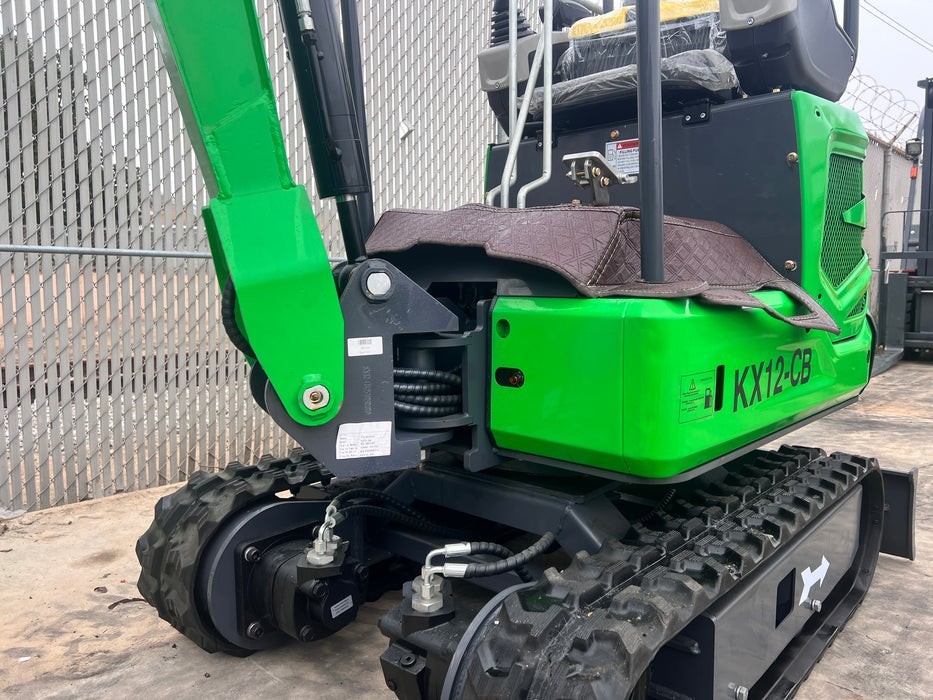

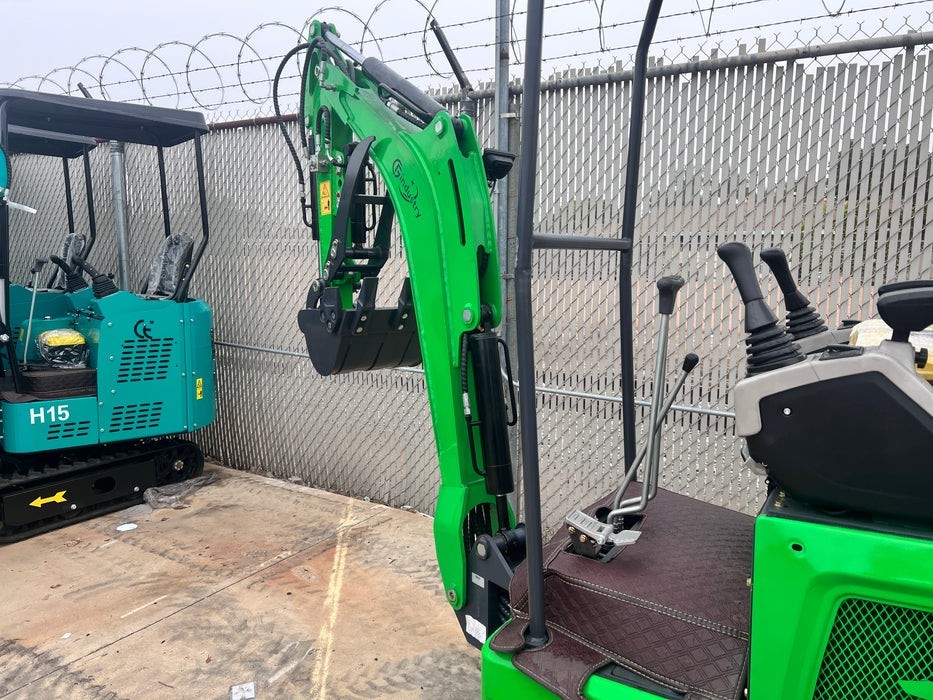

Built for convenience, it includes a swing boom with hydraulic thumb for enhanced gripping capability, pilot controls for smooth operation, and an inverted boom cylinder design that optimizes performance. The 18-liter hydraulic tank and 12V battery system ensure reliable operation in various working conditions.
