Engine Model RATO Gasoline Engine. Fuel Type Gasoline (#92). Rated Power 23 hp (16.8 kW). Rated Power: 16.8 kW (23 HP). Rotary Hydraulic Motor BM2-315. Traveling Hydraulic Motor BM6-315. Max Climbing Angle 15°.

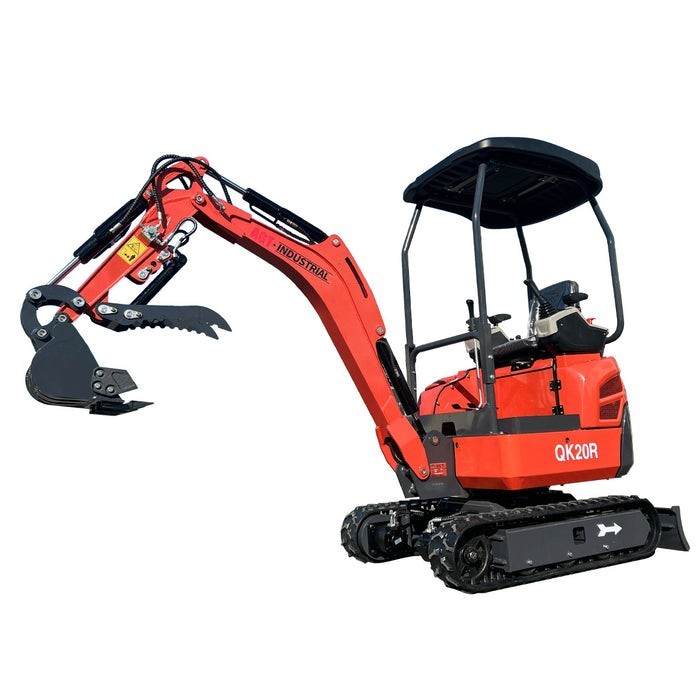

This is a lightweight mini excavator weighing just 1.4 tons, designed for tight spaces and maneuverability. It measures 2,925 mm in length and 958 mm in width, making it ideal for confined work areas.
The machine is powered by a RATO R740D gasoline engine producing 23 horsepower with a 740 cc displacement. It runs on standard #92 gasoline with a 6.6-liter fuel tank capacity.
The excavator features a 0.03 m2 bucket capacity and can dig to a maximum depth of 1,693 mm while reaching heights up to 2,560 mm. Its maximum dumping height extends to 1,800 mm, and it can climb angles up to 15 degrees. The machine travels at speeds up to 1.8 km/h.
Its hydraulic system includes a gear pump delivering 21.6 L/min at 25 MPa pressure, with dual hydraulic motors for rotation and travel functions. The equipment comes equipped with a hydraulic thumb, pilot controls, and LED work lights for enhanced functionality and visibility.
This compact machine offers excellent maneuverability with a 3,060 mm minimum swing radius, making it well-suited for landscaping, construction, and utility work in areas where larger equipment cannot operate.
