Why Choose Our CFG 35UF?. Hydraulic Cylinders (Standard Backhoe) Engine Model: KUBOTA D1105 (water-cooled diesel). High-Performance Hydraulic System. Hydraulic Pump: Piston pump (HP5VS28-AV1ORB2S1MA-L1-1-T921).

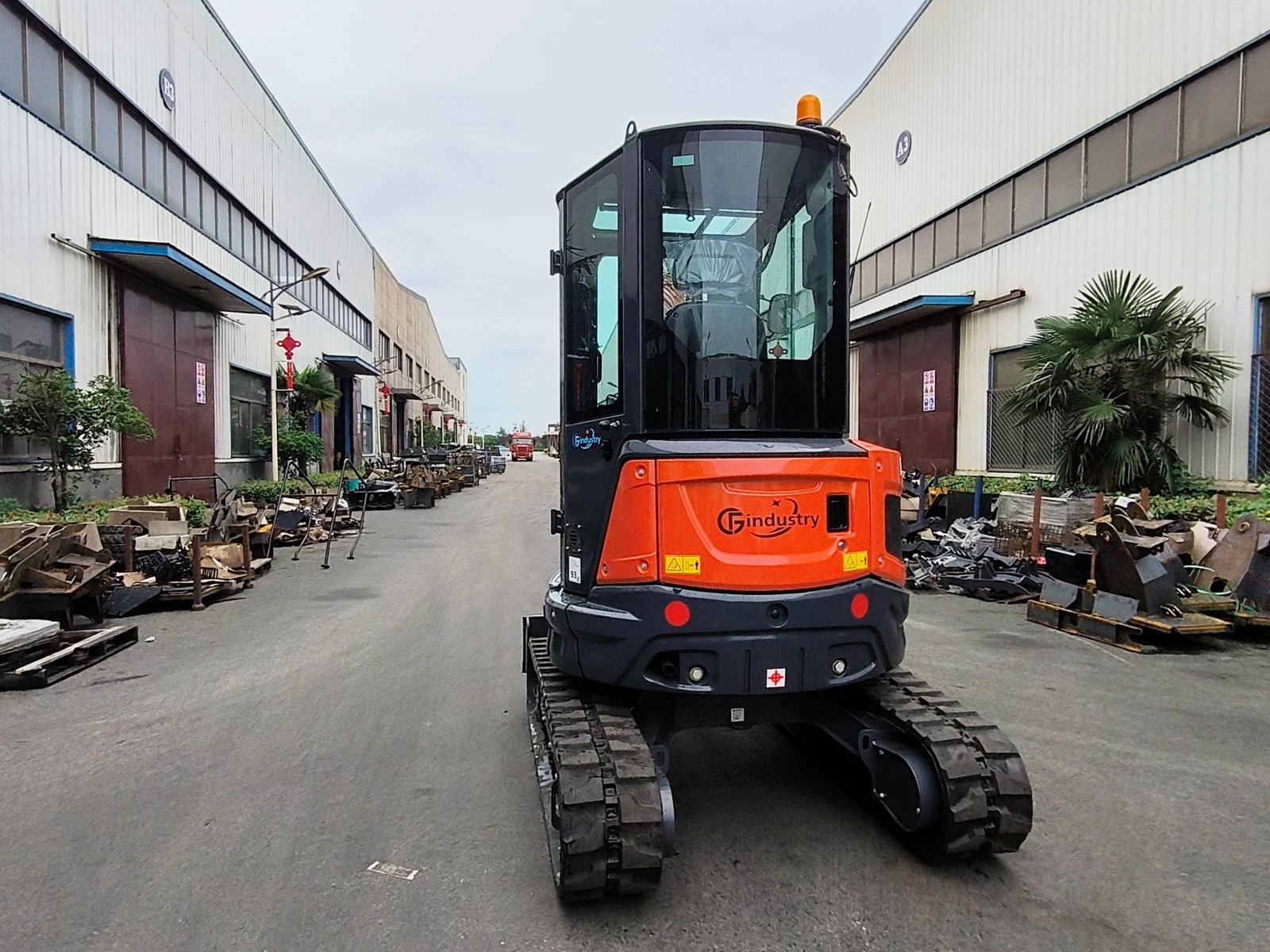

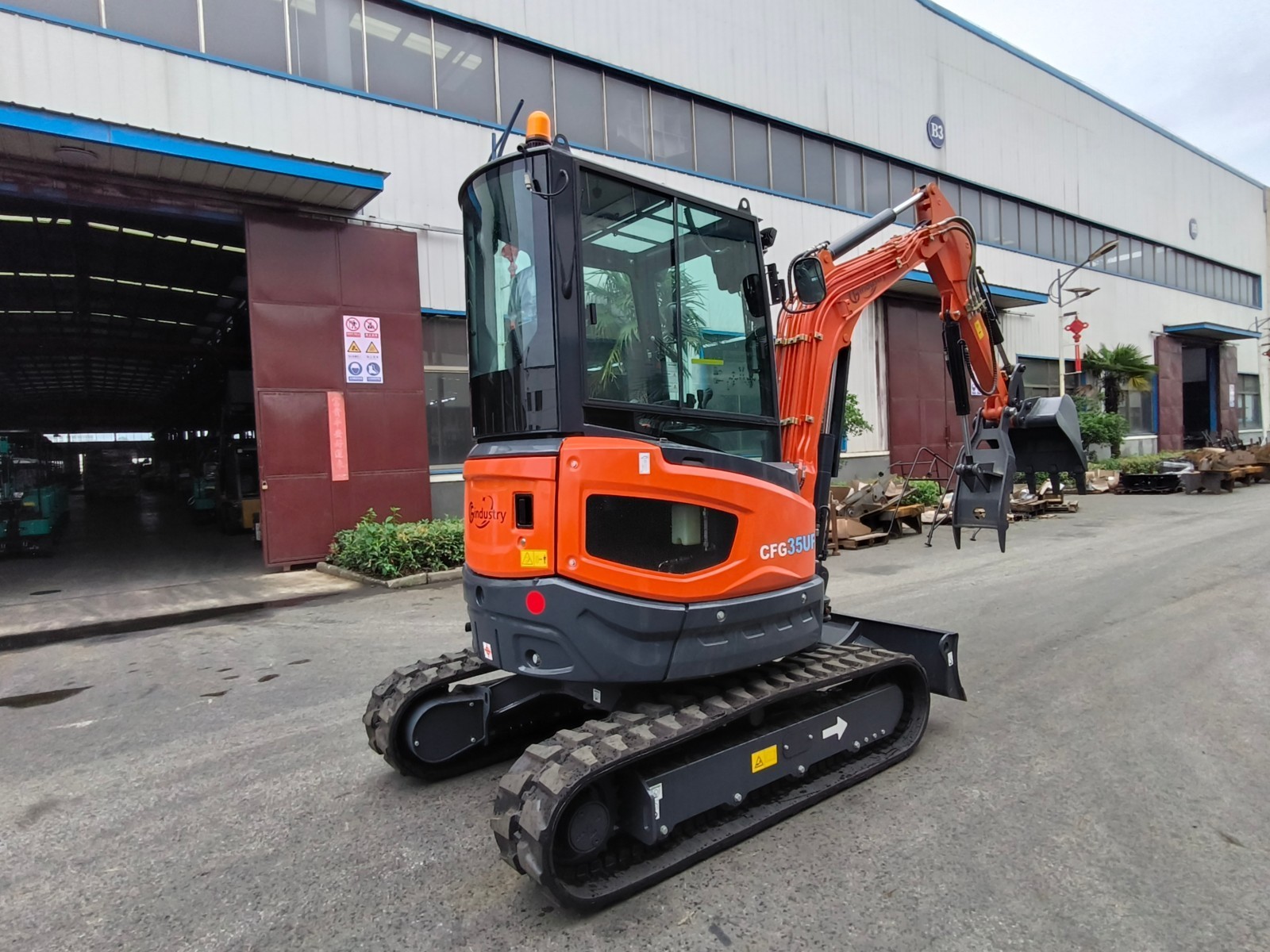

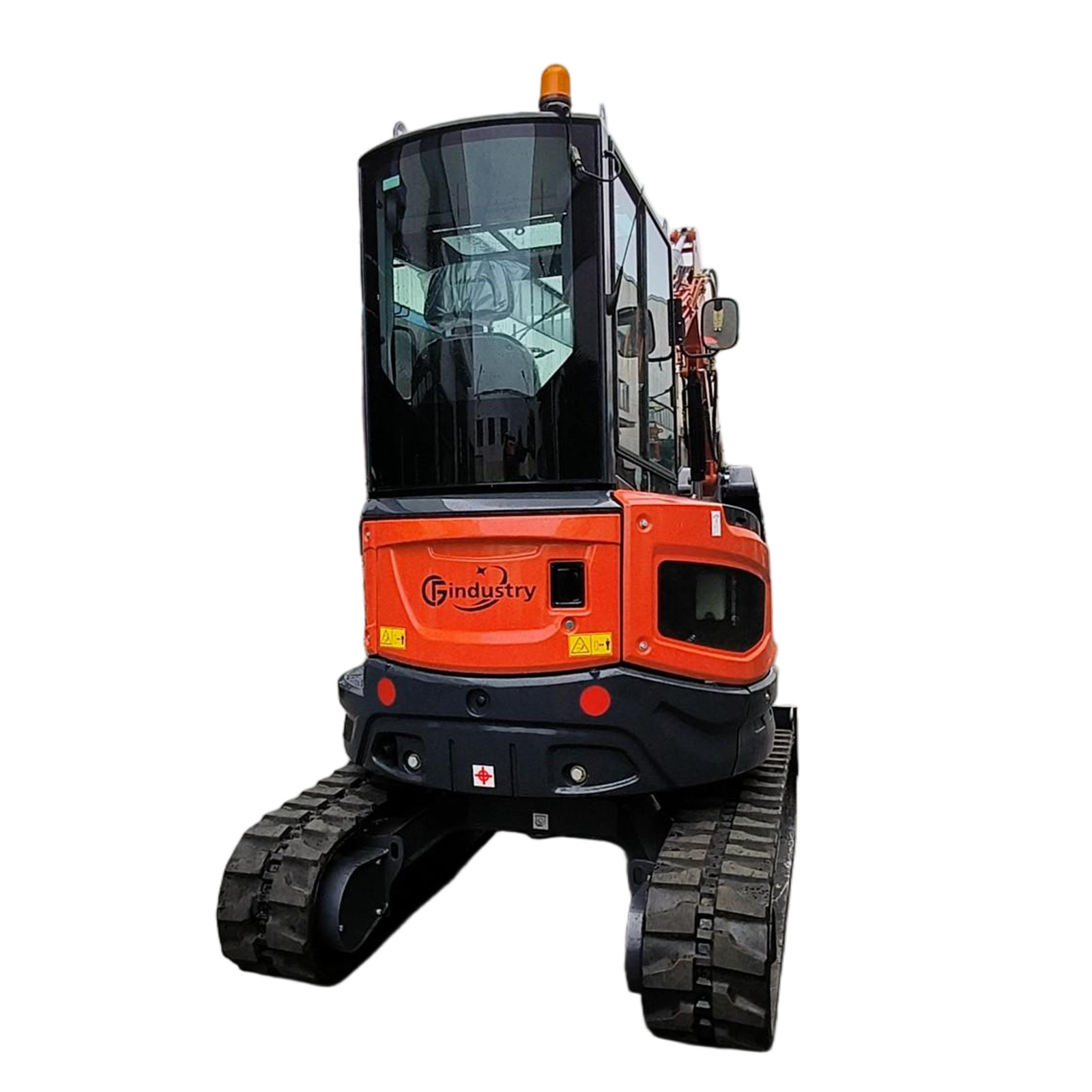

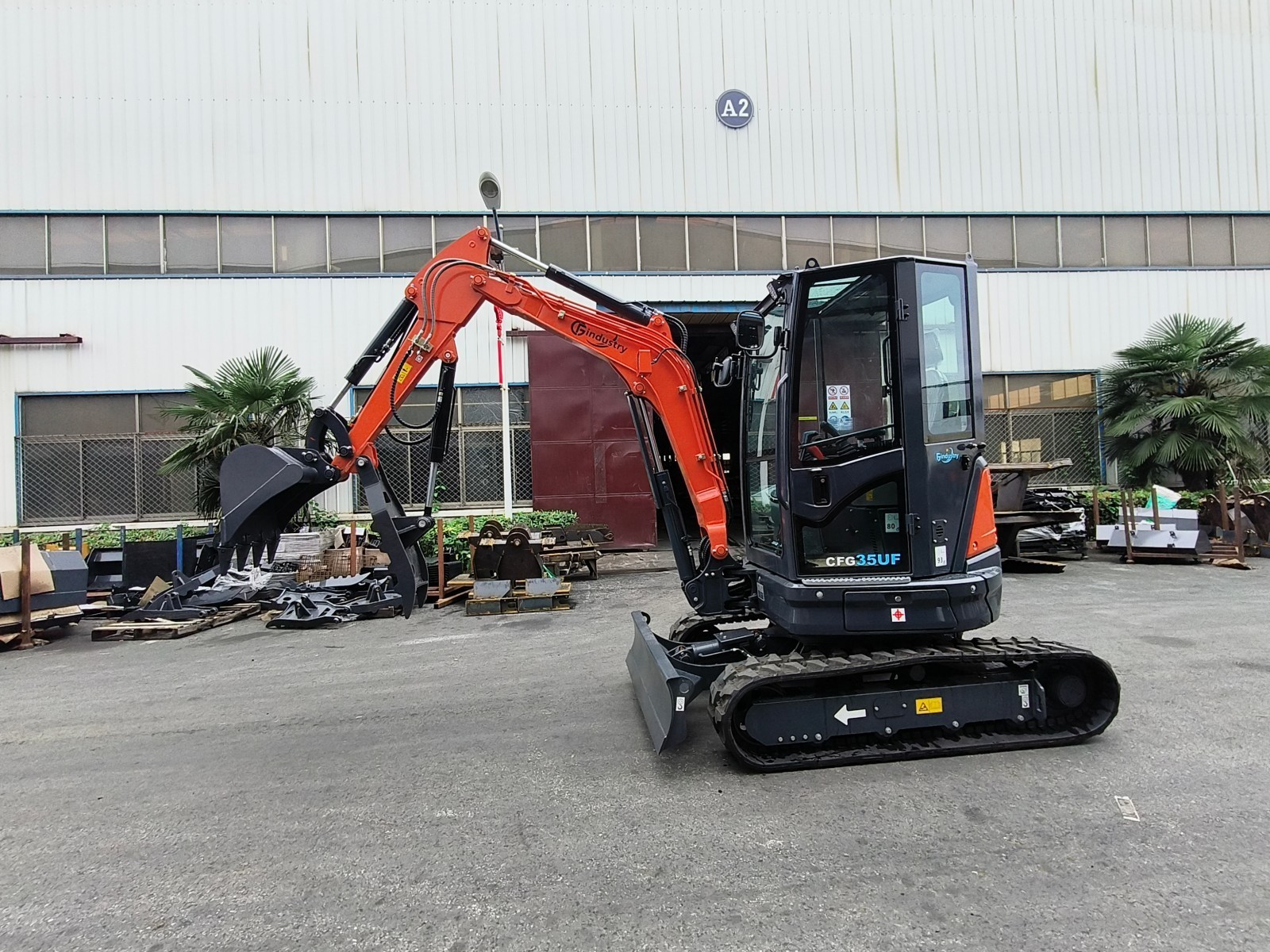

The CFG 35UF is a compact excavator built for urban construction, landscaping, and utility projects. Despite its small footprint with a tail swing radius of just 765 mm, it delivers impressive digging power and precision.
At its heart sits a KUBOTA D1105 diesel engine producing 20.6 HP with excellent fuel efficiency. The advanced hydraulic system features a piston pump delivering 67.2 L/min at 24.5 MPa, paired with proportional joystick controls for smooth, responsive operation of the boom, arm, bucket, and swing mechanism.
This machine can dig to depths of 2,800 mm, reach heights of 4,235 mm, and handle vertical digging depths of 2,590 mm. The swing motor generates 5,099 N·m of torque at 9 rpm, while the hydraulic track system climbs slopes up to 30 degrees. Travel speeds reach 4.4 km/h on high and 2.6 km/h on low.
The operator benefits from hydraulic cooling, a 12V electrical system with 63Ah battery, and a 26-liter fuel tank for extended operation. Multiple bucket sizes are available, from 0.04 m³ to 0.13 m³, adapting to trenching, landscaping, road maintenance, and light industrial work.
The machine measures 4,150 mm long, 1,500 mm wide, and 2,510 mm tall with a ground clearance of 325 mm for rough terrain operation.
