Pressure sleeve range:<150mm/5.91in. The product pump station is equipped with a plug. The pump station needs to add 46 # or 68 # anti-wear hydraulic oil by yourself. Hope for your understanding. You can make order with no worry.

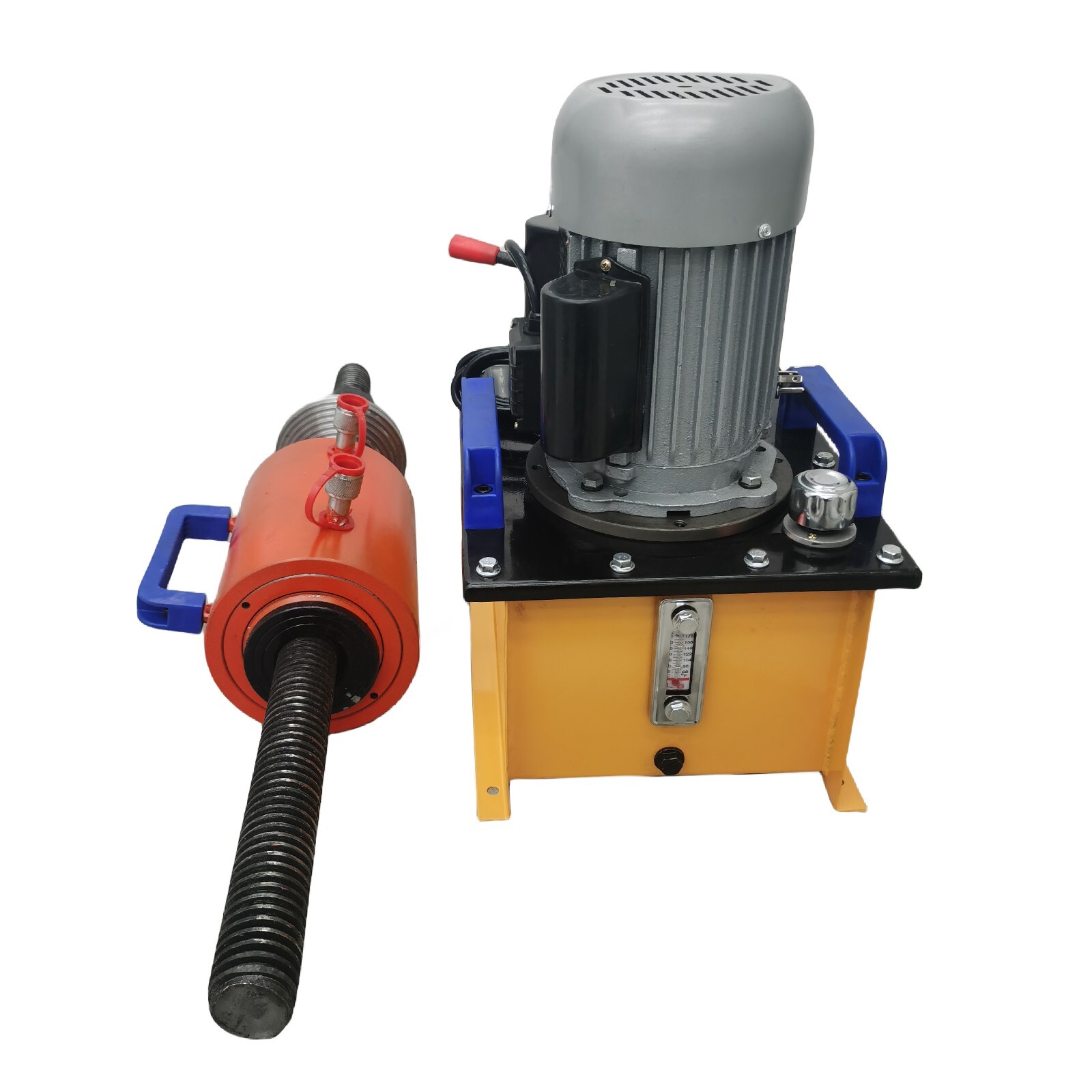

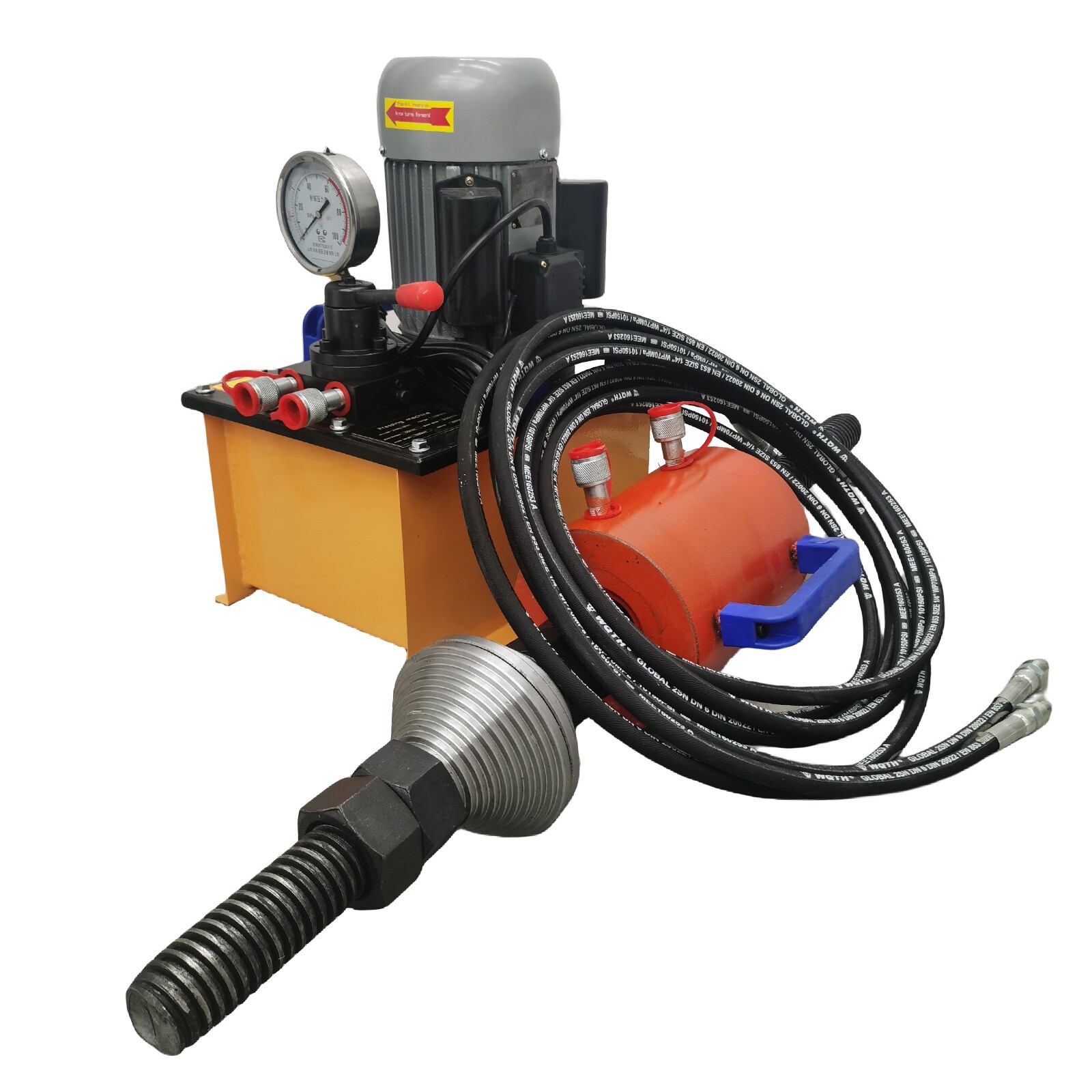

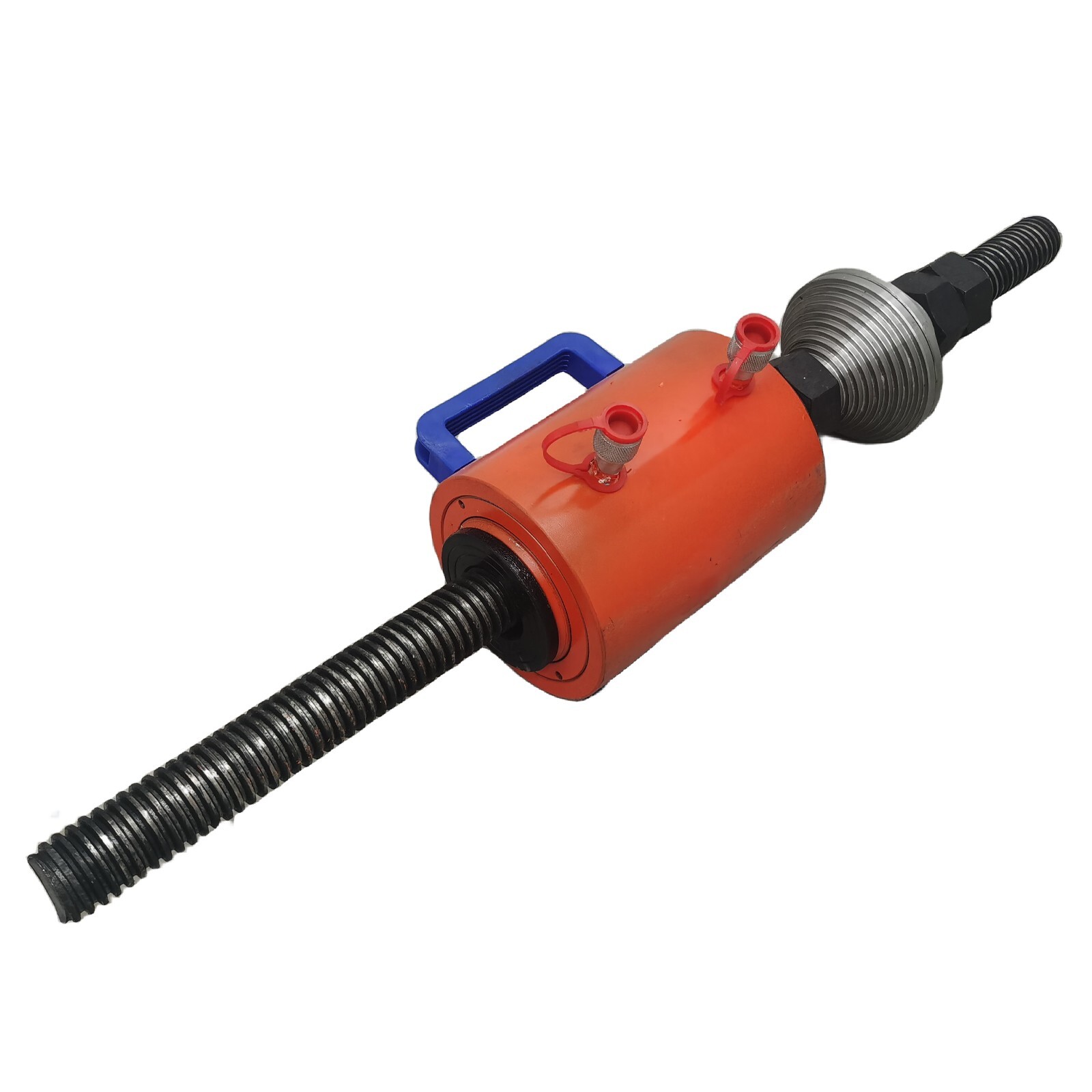

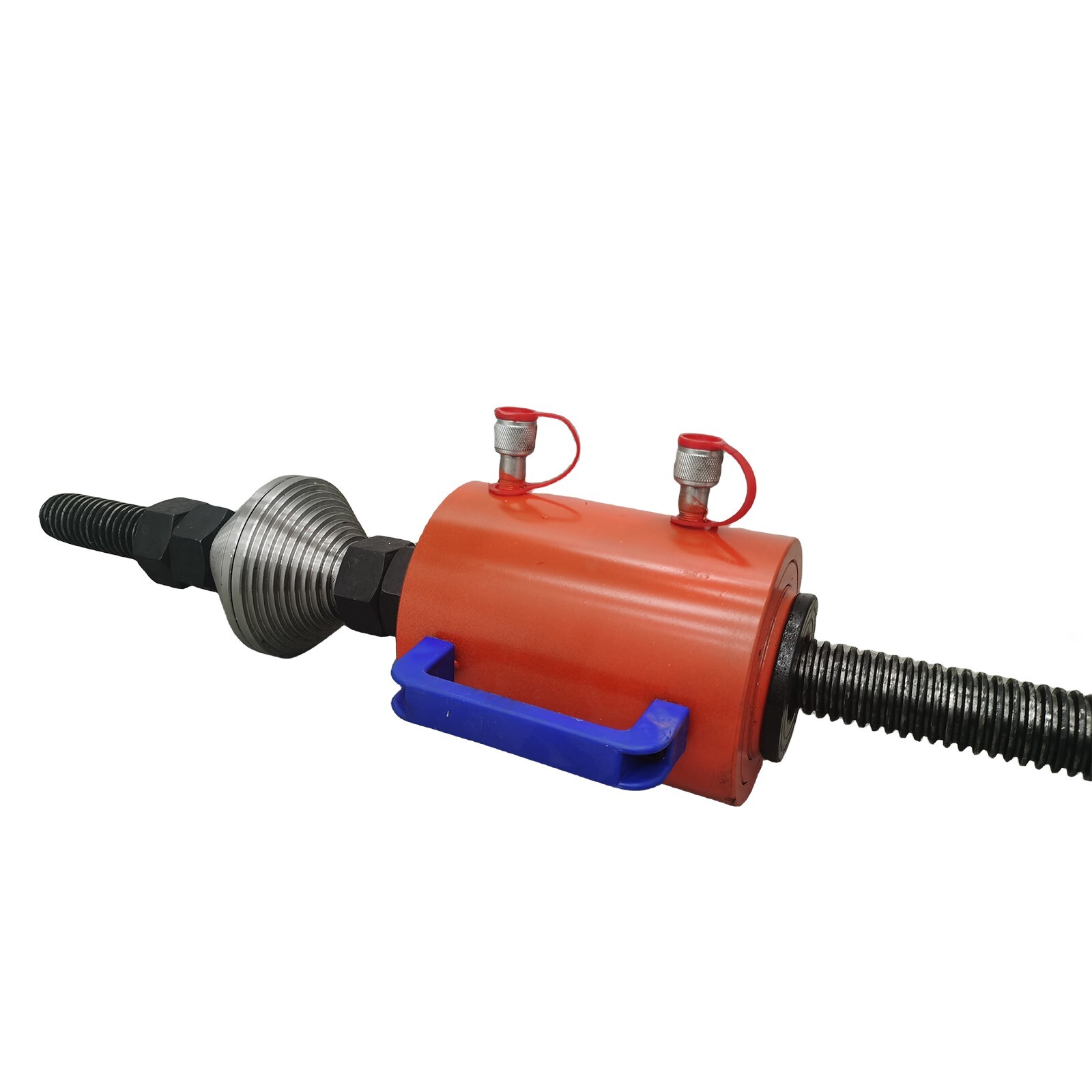

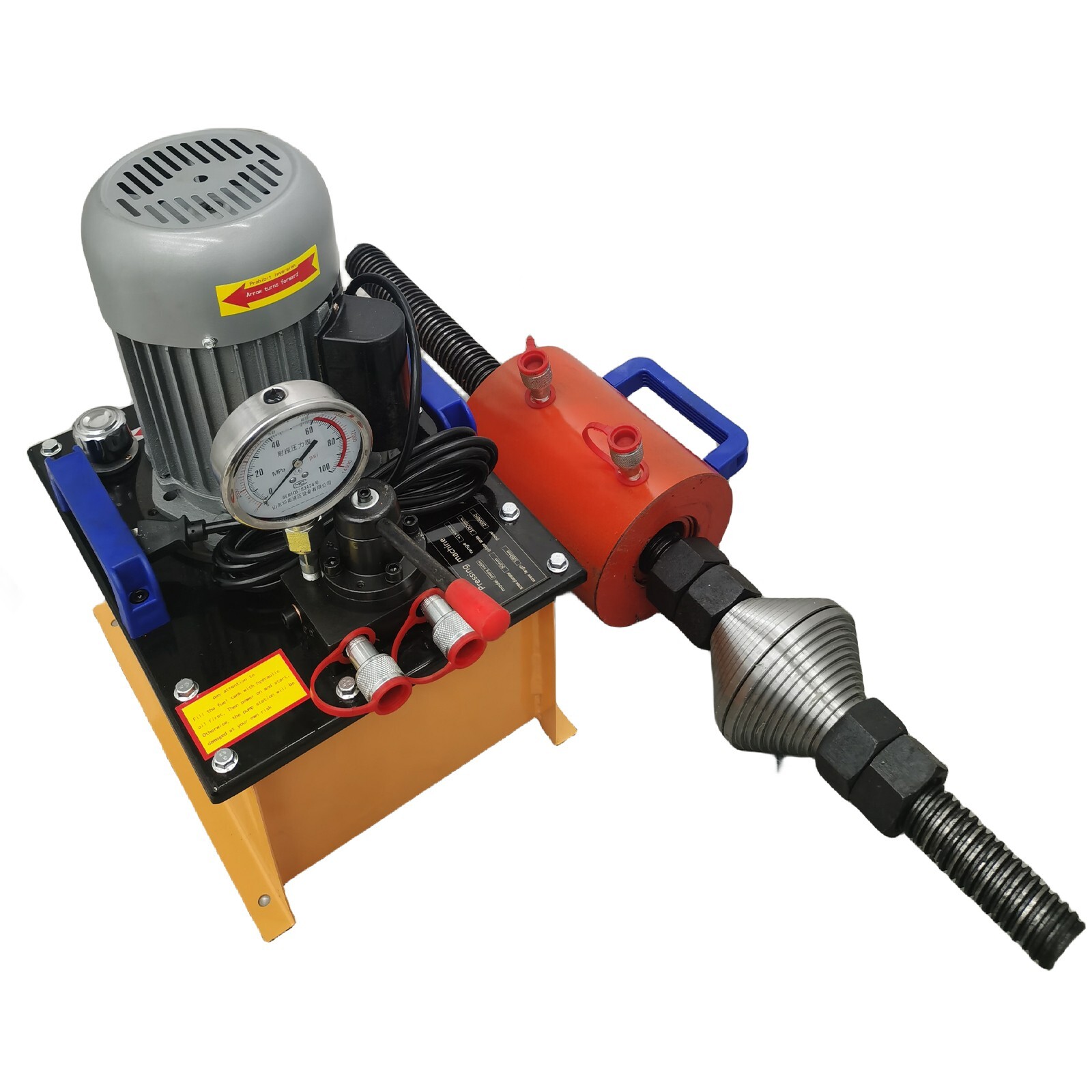

This 100-ton hydraulic sleeve pressing machine is designed for construction machinery maintenance, specifically for pressing and installing shaft sleeves on tracked equipment like excavators. It replaces the traditional and labor-intensive manual hammering method, ensuring that steel sleeves remain intact and undamaged during installation.
The machine operates on 220V power with a 1500W motor and features a bidirectional hydraulic system that simplifies maintenance and provides flexible operation. It can handle pressure sleeves up to 150mm in diameter and operates at pressures ranging from 0 to 63 MPa. The unit includes a 16-liter pump station with a 100mm cylinder stroke and a 50mm diameter screw measuring 1000mm in length.
Important note: The hydraulic system requires 46# or 68# anti-wear hydraulic oil to be added before initial use. The pump station is equipped with a plug for easy oil tank filling. Operating the machine without proper hydraulic oil will damage the pump.
The machine comes with a 6-month warranty covering the equipment itself, though consumables are excluded. Customer service support remains available even after the warranty period expires.
