Operation Weight: 1 Ton. Engine: RATO Gasoline. Fuel Type: Gasoline. Horse Power: 13.5. Motor Types: BM6K-315 (Travel), BM2-315 (Slewing). Hydraulic System Main Pump Flow Rate: 8-12 gallons/minute. Tank Capacity: Fuel - 1.77 gallons, Hydraulic Oil - 4.76 gallons.

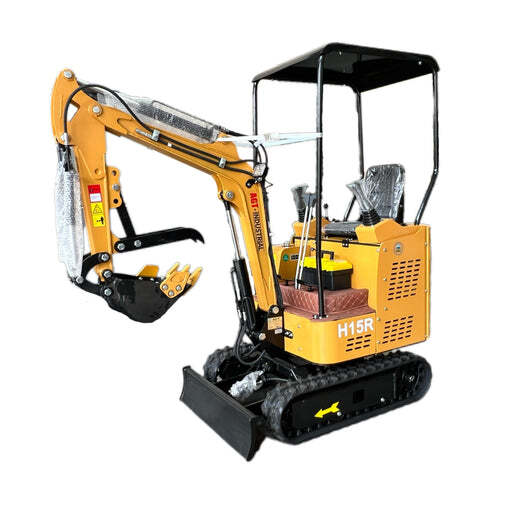

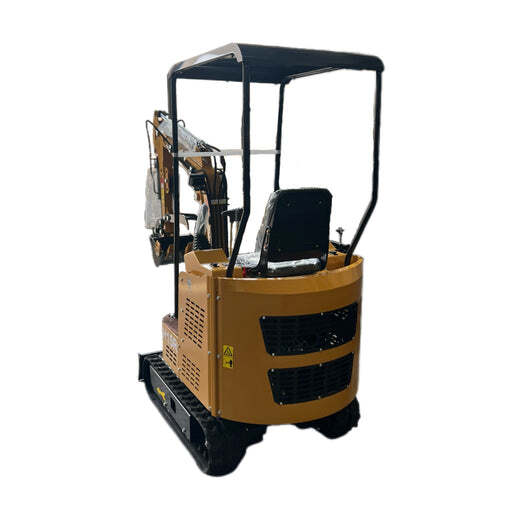

This 1-ton mini excavator is built for precision work in tight spaces. Powered by a 13.5 horsepower RATO gasoline engine, it delivers the digging force needed for small-scale excavation projects without requiring heavy equipment logistics.
The machine features a 0.88 cubic feet bucket capacity and can dig up to 65 inches deep with a maximum reach of 112.2 inches. Its 35-degree maximum tilt angle provides excellent maneuverability on uneven terrain. At just 84.25 inches long and 39.37 inches wide, it navigates confined job sites with ease.
The hydraulic system operates at 23.5 psi for travel and 18 psi for slewing, powered by dual motors and an 8-12 gallons-per-minute pump. The excavator travels at speeds up to 1.24 mph and can lift materials to 72.83 inches high.
Fuel efficiency is practical, with 92-octane gasoline consumption between 0.5-1.2 quarts per hour and a 1.77-gallon fuel tank providing extended working sessions. The 4.76-gallon hydraulic system ensures consistent performance throughout the day.
