Hydraulic system. Maximum power(HP): 13.5. Climbing ability(%): 11. Rated set pressure(Mpa): 16. Fuel Type:Gasoline. F: Minimum turning radius(mm): 1470. Bulldozer Width/Height: 950/235. M: Wheelbase(mm): 930.

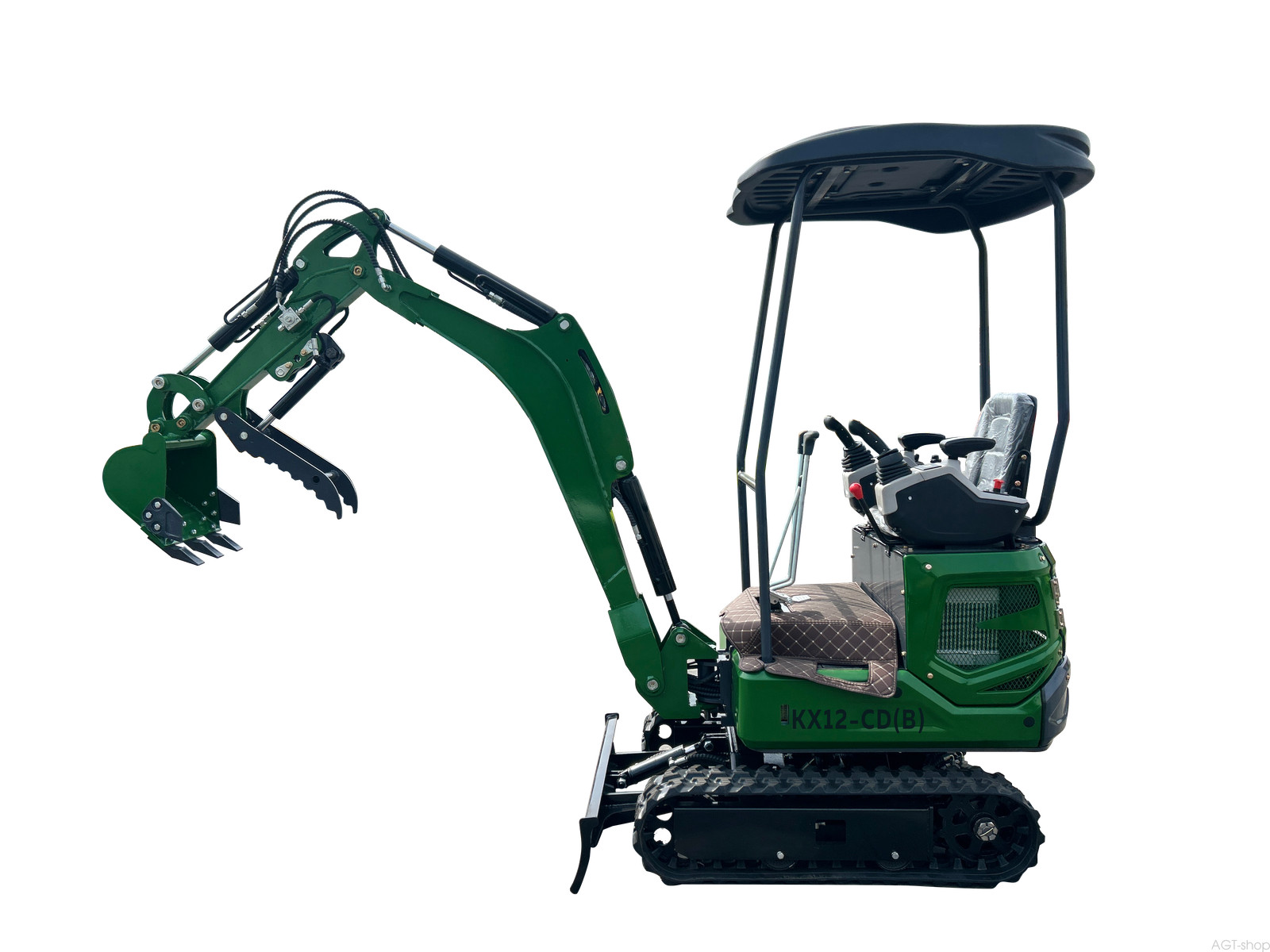

The AGT-KX12-CD(B) is a compact mini excavator designed for light construction work and tight-access job sites. Powered by a 13.5 HP Briggs & Stratton gasoline engine, this machine delivers reliable performance in a highly maneuverable package.
With a working weight of just 900 kg, the KX12-CD(B) remains nimble enough for confined spaces while maintaining practical digging capabilities. The 0.03 m³ bucket can reach a maximum digging height of 2900 mm and dig to a radius of 3250 mm, making it suitable for various excavation tasks.
This model features side-swing capability for improved versatility and includes dual blade lifting functions with a bulldozer that lifts to 190 mm height. The compact dimensions - measuring 3240 mm in length, 990 mm in width, and 2200 mm in height - make it ideal for navigation through narrow passages.
The machine uses fan cooling to maintain optimal engine temperature and operates on a straightforward 16 Mpa hydraulic system with a main pump flow of 21.6 L/min. Travel speeds reach up to 1.8 km/h, and it can handle slopes with an 11% climbing ability.
Easy maintenance and affordable operation define this practical excavator for contractors seeking dependable performance on smaller projects.
